Precision CO2 Controller for Mushroom Cultivation

Description

The CO2 Controller for Mushrooms is designed to monitor and exhausts farm air when CO2 levels get too high and protect mushroom’s from high concentrations. After the growth becomes evident, the optimum requirements change.

Farmers typically need to maintain CO2 concentrations between 800 to 1500ppm, depending on the nature of the mushroom.

Features

• Controls up to 2 zones (for small or large facilities)
• Accurate CO2 Control for Optimized Mushroom Growth
• 2 states of CO2: shows the CO2 status in HVAC mode
• Customize your CO2 setpoints for high or low levels
• Dual mode for greenhouse or mushroom applications

**All Sales Are Final**

Specifications

• Measurement Range: 0-3,000ppm CO2

• CO2 Sensing Method: Non-dispersive Infrared (NDIR)

• Target Gas Ranges: 0-2,000ppm and 0-5,000ppm

• Measurements: Requires 1 liter per minute of constant flow per channel

• Resolution: 1ppm @ 0-1,000ppm; 10ppm above 1000pm

• Dimensions: 4.96 x 6.70 x 2.65 inches

• Accuracy: ±70ppm or ±5% CO2

• Sensor Response Time: < 2 minutes

• Operating Temperature: -20°C to 60°C

• Sensor Cables:  CAT5e

• Relays: 2 relays, either (Normally Open) NO or (Normally Closed) NC

Electrical

• Power: Adapter 110/220 VAC

• Power Consumption: 1 W max @ 115 VAC 60 Hz | 2 W max @ 230 VAC 50 Hz

• Power Supply: <5A @ 250 VAC, SPST

Included

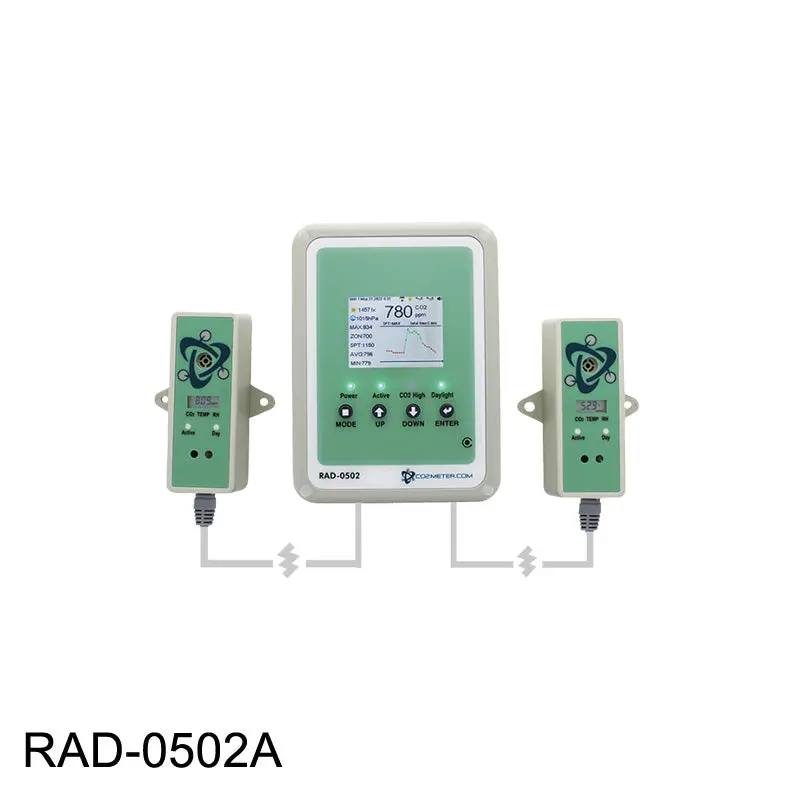

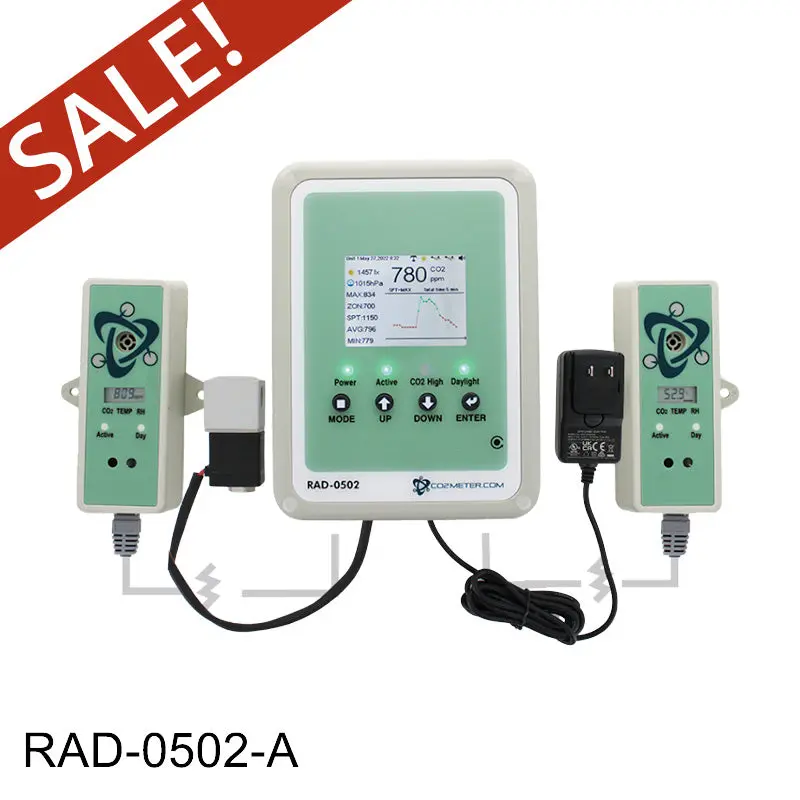

• (1) Indoor CO2 Controller

• (2) Remote CO2 Sensors

• (2) CAT5e Cables – 25′ ft.

• (1) Wall Plug Safety Strap

• (1) Mounting Bracket

• (6) Screws

• (1) 110/220 VAC Power Supply

• (3) International Power Adapters

Warranty

• 1 year – See CO2Meter Terms and Conditions.

Documents

Data Sheet (pdf)
Manual (pdf)

Accessories

SV-1029 Solenoid Safety Shut-Off Valve

• The 3/8 Inch Solenoid Valve is designed to turn CO2 tank regulator valve on and off via the relay connection. Power Supply is included.
