COZIR-WR Series 5% Full-Scale CO2 Sensor

Description

The ExplorIR®-W (formerly known as CozIR Wide Range) is a low power, high performance CO2 sensor that measures 5% CO2 in battery powered and portable alarm monitoring applications.

Features

• 0-5% CO2 Measurement
• Durable, low power consumption
• Industry standard serial communication
• Ideal for battery powered applications, or harsh/rugged environments
• Simple to install, pre-calibrated and ready-to-use

Models

• GC-0015 ExplorIR®-W 5% CO2 Sensor Only – for integration into high-volume OEM products. Contact us directly for wholesale pricing on large quantities of this sensor.

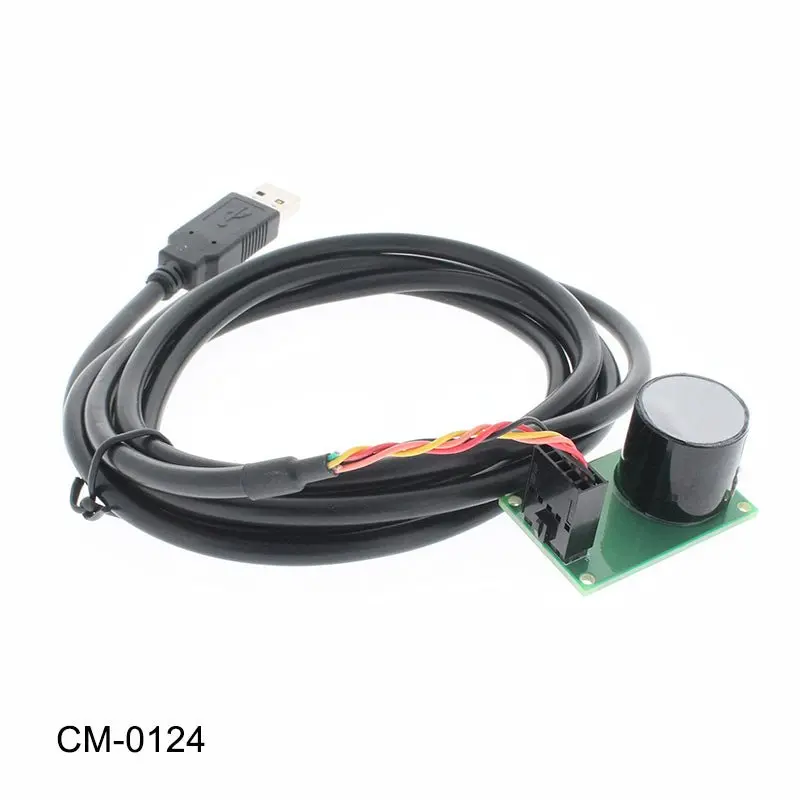

• CM-0124 ExplorIR®-W 5% CO2 Sensor Development Kit – Easy to use, simply plug the sensor module into your PC via the included serial UART to USB cable. Use our free GasLab® software to measure and graph carbon dioxide, to configure the sensor or for data logging.

Specifications

• Measurement Range: 0-5% CO2
• Sensing Method: NDIR with Gold-plated optics
• Sample Method: Diffusion (default) or sampling with optional tube adapter
• Accuracy: ±70 ppm ± 5% of reading
• Resolution: 10ppm
• Sample Rate: 500 ms (2 Hz) measurement interval
• Response Time Filter: 4 secs to 2 mins (user configurable)
• Serial communications: 9600/8/1/N
• Warm-up Time: < 10s
• Operating Conditions: 0°C to 50°C, 950 mBar to 10 Bar
• Weight: 8g
• Sensor Life Expectancy: > 15 years

Electrical/Mechanical

• Power Input: 3.3 ±0.1 volt  DC < 3.5 mW
• Peak current: 33mA
• Devkit includes 6’ (1.8m) USB cable (non-standard)

Warranty

• 90 days – See CO2Meter Terms and Conditions.

Documents

Data Sheet (pdf)

Manual (pdf)

 Devkit Quick Start Guide (pdf)

Incubation White Paper (pdf)

Dimensional Drawings (pdf)

Arduino Sample Code (pdf)

Quality Certificate – ISO9001 (pdf)

Labview Examples for COZIR CO2 Sensors (zip)

Free Easy-to-use GasLab™ Software

This device uses GasLab® software for setup, calibration, data logging, and real-time data analysis. GasLab® makes it easy to export data into a .CSV file that can be imported into any industry-standard software or spreadsheet. GasLab® runs on Windows XP or higher, and free to use with our products.

Accessories

• Probe Enclosure for Development Kits and Hydrophobic Filter Option
• TC1-5 Tube Cap Adapter – easily converts a wide range of gas sensors from diffusion applications to sampling.
