DT-156 Digital Coating Thickness Gauge – 0–1250 µm (0–49.2 mils) with USB Data Transfer, PC Software, Dual-Frequency Probe, and 400-Point Memory

Description

This compact & handy Professional Gauge is designed for non-destructive, fast and highly accurate/precise coating thickness measurement.

It stores 400 memory values and displays 5 statistics ( AVG, MAX, MIN, S.DEV and Number of reading in work mode). It comes with software CD and USB cable for transferring collected data to computer for later analysis or data printing.

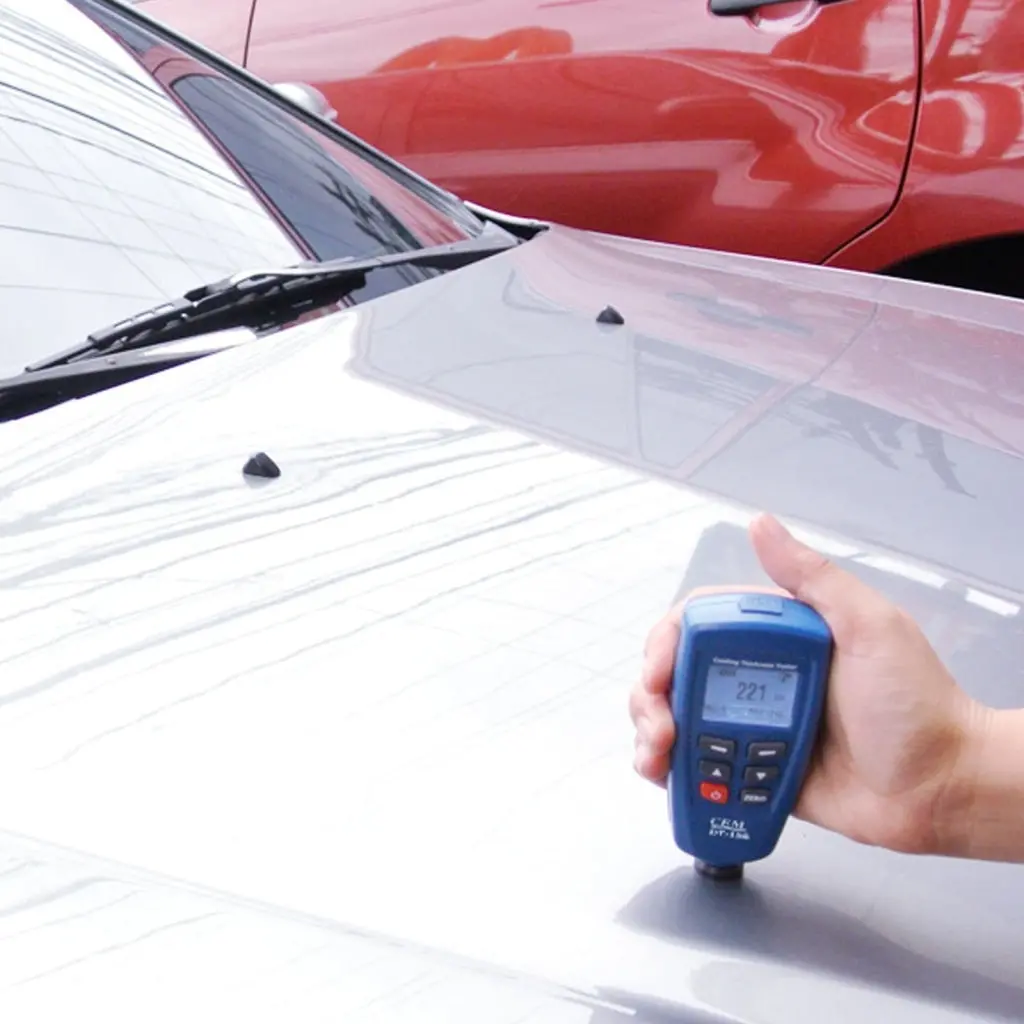

DT-156 is ideal for manufacturer, offices & specialist advisers, paint shops & electroplaters, chemical, automobile, shipbuilding and aircraft industries including light & heavy engineering.

Features:

• Non-magnetic coatings (e.g. paint, zinc) on steel
• Insulating coatings (e.g. paint, anodizing coatings) on no-ferrous metals
• No-ferrous metals coatings on insulating substrates
• Blue backlight display
• One-point calibrating and two-point calibrating independently for each working mode
• Zero calibration
• 400 Memory readings
• Delete functions
• High alarm and Error indication
• V-Groove on probe for small cylindrical parts
• Disable Auto-Power-Off function
• USB interface for PC software
• Conforms to the following industrial standards:
• GB/T 4956-1985
• GB/T 4957-1985
• JB/T 8393-1996
• JJG 889-95
• JJG 818-9

Specifications :

• Sensor Probe: F & NF
• Working Principle: Magnetic Induction / Eddy Current Principle
• Range: 0~1250µm / 0~49.2mils
• Two measuring mode : CONTINUOUS and SINGLE mode
• Two Operating/working mode: DIRECT and GROUP mode
• Guaranteed Tolerance :
• 0~850 µm (±3% + 1µm) ; 850 ~ 1250µm (±5%)
• 0 ~ 33.46 mils (±3% + 0.039mils) 33.46~49.21mils (±5%)
• Accuracy :
• 0.50um(0.1µm) 50~850µm(1µm) 850~1250µm(0.01mm)
• 0~1.968mils(0.001mils) 1.968~33.46mils(0.01mils) 33.46~49.21mils (0.1mils)
•  Min. Curvature Radius: 1.5mm / 3mm
• Diameter of Min. Area: 7mm / 5mm
• Min. Thickness of Substrate: 0.5mm / 0.3mm
• Low range Precision: 0.1µm / 0.1µm
• Statistics Display : AVG, MAX, MIN, S.DEV and Number of readings in work mode
• Memory readings: 80 DIRECT and 320 GROUP readings
• Software Compatibility: windows 98/2000/xp/Vista/Win7, 8, 10
• Working Temperature: 0~40°C (32~104°F)
• Working Relative Humidity: 20~90% RH
• Size: 110 x 50 x 23mm
• Weight: 100g

Set Includes:

• 1 x Paint Coating Thickness Tester
• 5 x Calibration Foil
• 1 x Iron Substrate
• 1 x Aluminum Substrate
• 1 x Protective Carrying Case
• 1 x USB cable
• 1 x CD Software
• 2 x 1.5V AAA Battery
• English Instruction Manual
