Description
This Nuclear Detector Dosimeter is designed specifically for measuring β, γ, and X-ray radiation. It excels at detecting even the slightest variations in radiation levels and exhibits exceptional sensitivity towards the most commonly encountered nuclides. The detection mechanism relies on a Geiger-Müller (GM) counter tube, which registers ionizations produced by each ray passing through it. Consequently, the GM tube generates detection current pulses, and these pulses are captured by the electronic circuitry of the device and recorded as counts. In the selected mode, the displayed value on the dosimeter corresponds to the count value.

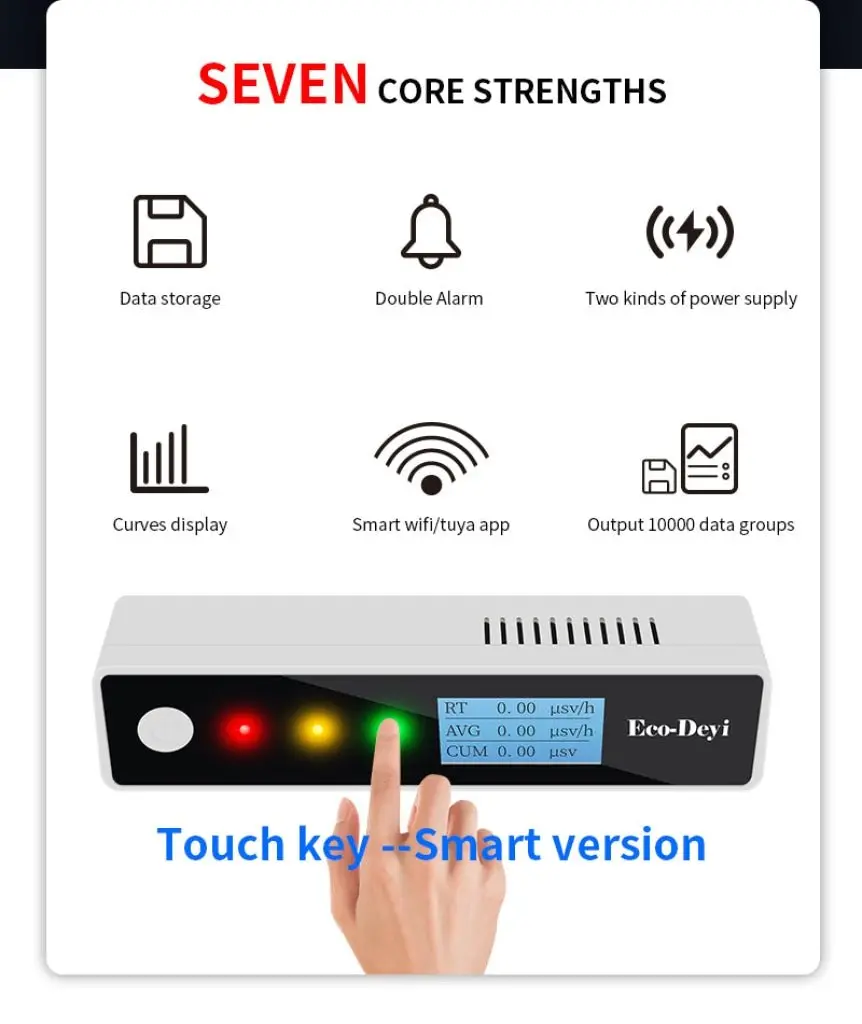

Features:
- Geiger-Müller counter tube
- APP and Wi-Fi connection to a smart device
- Record up to 10000 groups of data than can be exported
- Touch-screen keys
- Type-C charging interphase
- Compact and stylish design
- Rechargeable lithium battery
Specifications:
- Sensor type: GM tube with energy compensation
- Detection type: Hard Beta ray (β), Gamma ray (γ), X-ray
- Energy range: 20Kev~3.0mev ≤±30% (137Cs-)
- Sensitivity: 80cpm / µSV / (Co-60)
- Resolution: 0.01µSV/h
- Measuring range: 9999µSV/h
- Real time error: ≤3%
- Power Supply: 5V / USB 3.7 Lithium Battery / 800mAh
- Charging Duration: 1-2 hours
- Weight: approx. 59gms
- Dimension: approx. 120 x 26 x 27mm
Set Includes:
- 1 x Smart Dosimeter
- 1 x USB Type-C Charging Cable
- English Instruction Manual
- Standard Factory Packaging
