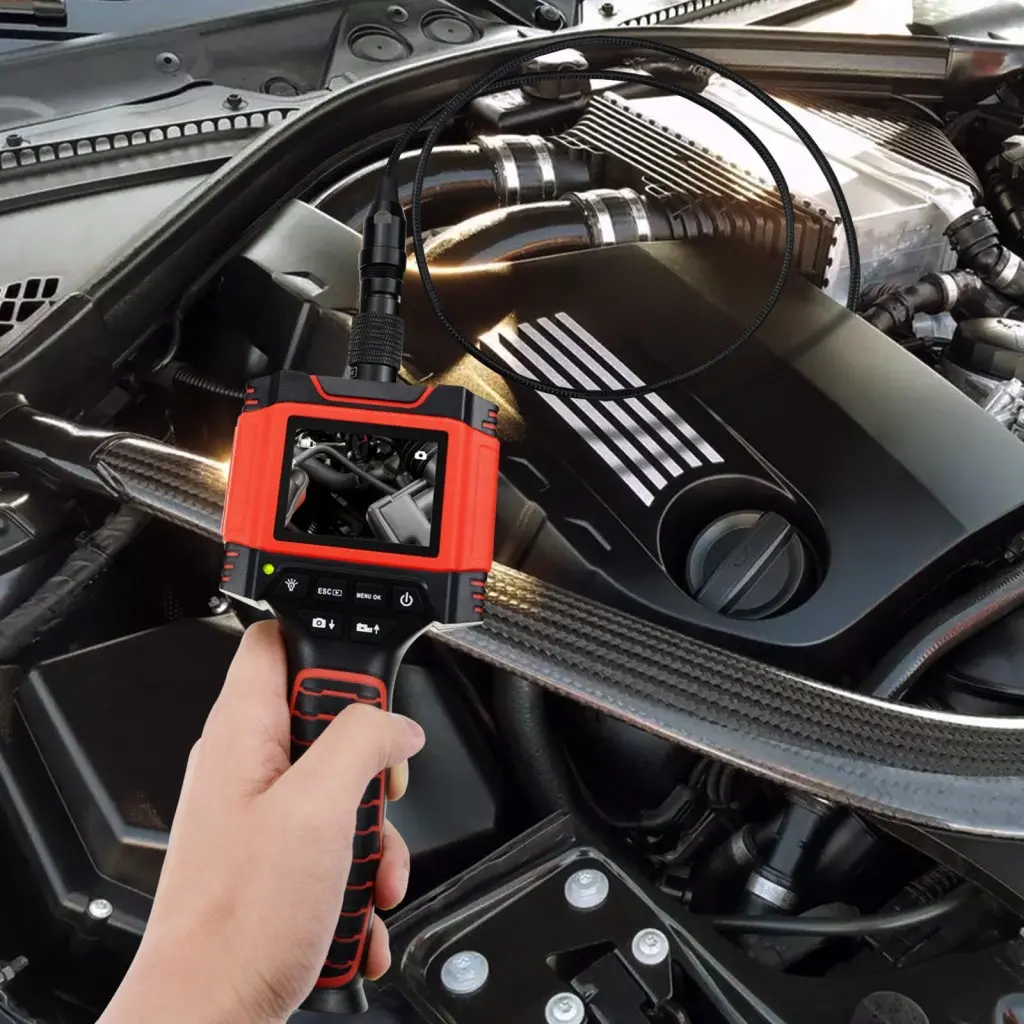

5.5mm 1-Meter Waterproof Borescope with 6-LED Illumination, 2.3-Inch TFT LCD Display, NTSC/PAL Output, and CMOS Sensor for Industrial Inspection and Recording

Description

Model: END-225_5.5MM_1M

A fantastic Video Inspection Camera with a fully waterproof 5.5mm camera and 1m cable. A worldwide patented product with 2.3″ colored display screen.

Applications:

• Small Engine Inspections
• Corrosion Inspections
• Automotive engines and other related applications
• Gun bore and related inspections
• Motor Inspections
• HVAC duct systems
• Building wall cavity viewing
• Sewer pipe inspections and related plumbing applications
• Aviation related applications
• Natural gas pipe inspections
• Internal machinery part inspections.
• Quality assurance inspections
• Mould and mildew inspections
• Insurance litigation and verification inspections.
• Verification of standards protocols in small and tight areas
• Building code compliance
• Electrical applications
• and many more.

FEATURES:

• 2.3” Colour TFT LCD
• Waterproof camera for high-resolution viewing
• Zoom IN/Out Function, 8 Levels
• Photo and Video capture with Time Stamp and Playback Functions
• 9 Languages: English (default), German, French, Italian, Spanish, Portuguese, Traditional Chinese, Simplified Chinese, Japanese
• Save, restore, and delete captured videos and photos in TF card memory card (not included), supports up to 32GB
• Loaded memory card indication on screen
• Supports NTC & PAL TV mode
• 6 ultra-bright LED lamps with dimmer function to illuminate viewed object and provide sight in complete darkness
• With AV Out and Auto power off
• 3 Handy tools INCLUDED – mirror, hook & magnet

SPECIFICATIONS:

• CAMERA & CABLE
• Imaging Sensor: CMOS
• Resolution: 640x480pixels, 1/4 VGA CMOS
• Frame Rate: 30FS@24MHz VGA
• Focus Range: 30~80mm
• 6 LED light
• Waterproof Capacity IP67
• MAIN UNIT
• LCD Screen Type 2.31″ TFT-LCD (RGB 960×240)
• Operating Temperature: -10~50°C
• Operating Humidity: 15~85% RH
• Captured Format: JPEG (photo/image), AVI (video)
• USB 2.0, compatible also to USB1.1
• Video Out: NTSC/PAL
• Power Supply: 4 x AA alkaline Battery, 3~4 working hrs, or Power via Micro USB cable

SET INCLUDES:

• 1 x Inspection Video Camera
• 1 x 5.5mm camera 1M cable
• 1 x Mirror tip
• 1 x Hook tip
• 1 x Magnet tip
• 2 x Ring
• 1 x A/V cable
• 1 x Micro USB cable
• English Instruction Manual
• Hard Carrying Case
