Figaro TGS5342 CO₂ Sensor – 5000 ppm Range

Description

The Figaro 5,000ppm CO2 sensor is designed to provide up to 5,000pm measurement for use in ventilation, HVAC, and indoor air quality applications.

Features

• High Accuracy and Low Power Consumption
• Includes both UART and I2C digital interface
• Easy integration into OEM products
• Absolute measurement via dual sensors

Models

• FG-010 Sensor Only – for integration into high-volume OEM products.

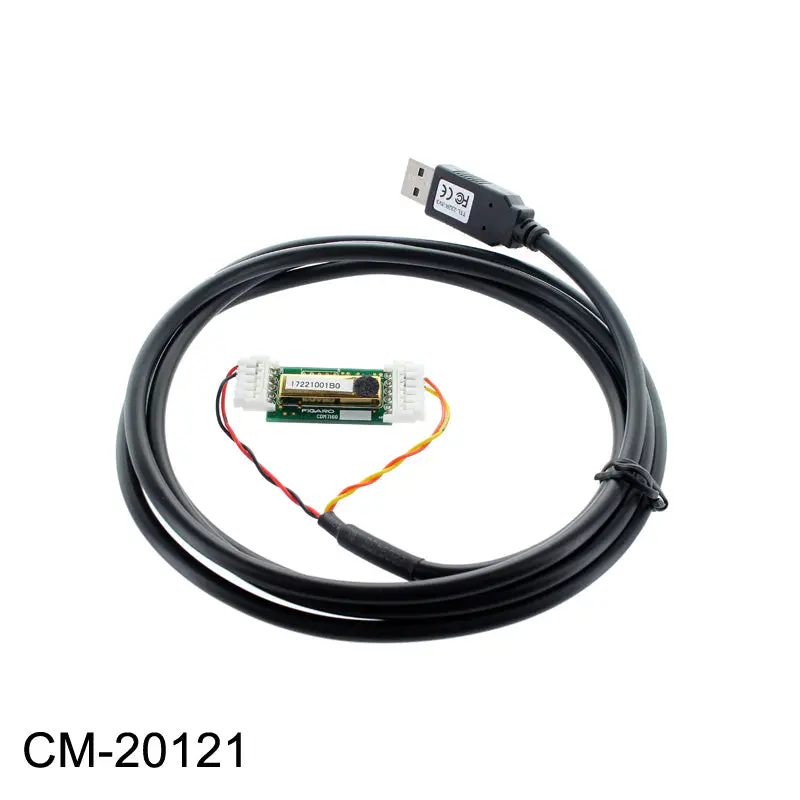

• CM-20121 Development Kit – Easy to use, simply plug the sensor module into your PC via USB. Use our free GasLab® software to measure and graph carbon dioxide or for data logging.

Specifications

• CO2 Sensing Method: Non-dispersive infrared (NDIR)
• Diffusion method
• Measurement Range: 300-5,000ppm
• Measurement Interval: 2 seconds
• Accuracy: ± (50 ppm + 3% of reading) @ STP
• Pressure Dependence: 1% of reading per kPa @STP
• Response Time (T90): 2 minutes (diffusion)
• Operating Conditions: 0°C to 50°C, 0 to 85% RH, non-condensing
• Storage Conditions: -30°C to 70°C, ~85% RH, non-condensing

Electrical / Mechanical

• Power Input: 4.75 to 5.25VDC
• Peak Current: 60mA
• Average Current: 10mA
• Interface: UART (Serial), I2C or Analog PWM
• Dimensions: 32 x 17 x 7.4mm (L x W x H)
• Weight: 3g

Warranty

• 90 days – See CO2Meter Terms and Conditions.

Data Sheet (pdf)

Manual (pdf)

Free Easy-to-use GasLab® Software

This device uses GasLab® software for setup, calibration, data logging, and real-time data analysis. GasLab® makes it easy to export data into a .CSV file that can be imported into any industry-standard software or spreadsheet. GasLab® runs on Windows XP or higher, and is free to use with our products.

Accessories

• Probe Enclosure for Development Kits and Hydrophobic Filter Option
