Description

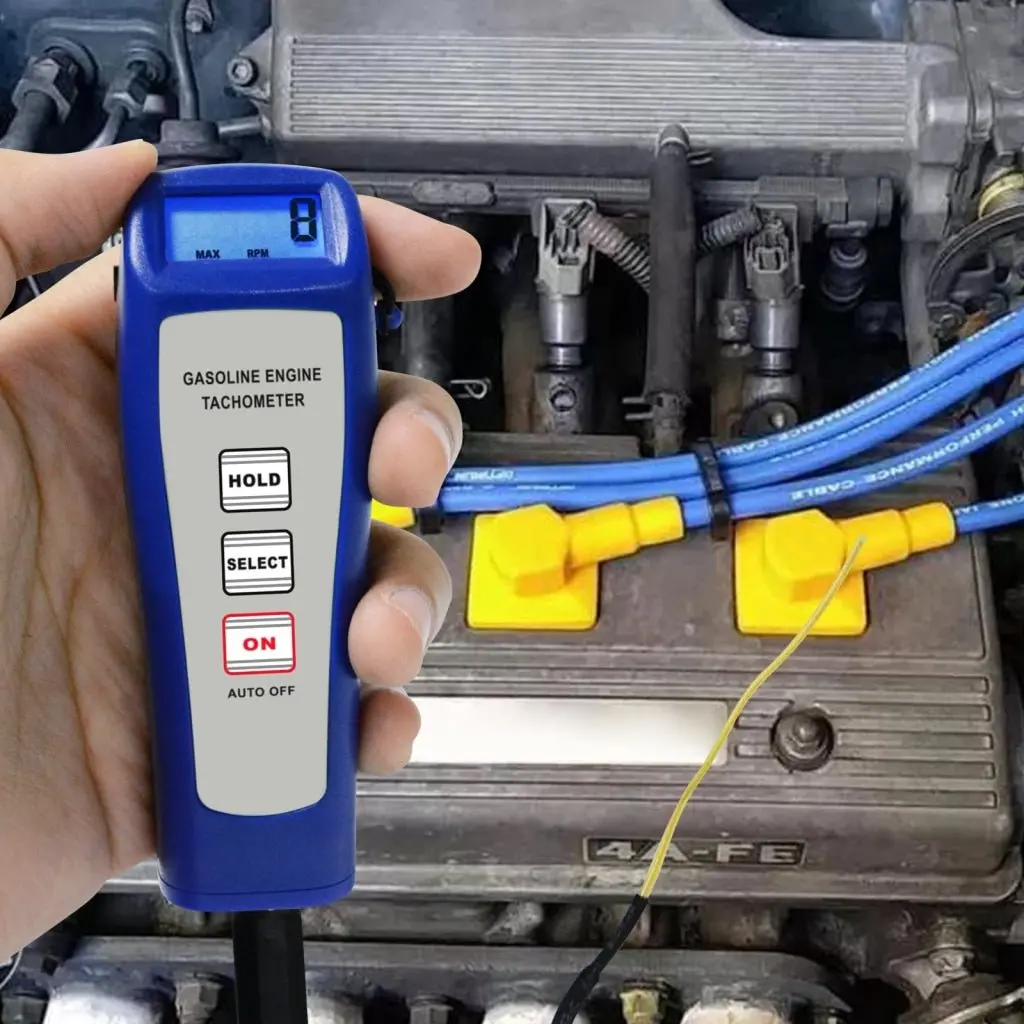

Detector, counter and display handheld engine tachometer runs with batteries which make highly portable and suitable for outdoor measurement. It displays rotational speed of gasoline engines in r/min unit. It is a non-contacting type tachometer which easily measures the rotational speed just by bringing the detection head close to the high-tension wires of gasoline engines.
Applications: Applicable to the product departments of motor, fan, paper-product, plastics, chemical fiber, washing-machine, automobile, airplane, steamer etc.
Feature:
- Non-contacting detection enables an easy and safe measurement
- Assures an accurate measurement because the signal indicator shows how the signal is captured
- Accurate rotational speed can be obtained in 0.1 or 1 r/min unit
- Comes with battery life indicator
- With audible alarm and Max data Hold function
- Compact, light weight and easy-to-carry, enabling one-hand measurement
- Record, analyze, print, communicate with PC
Specifications:
- Display: 4 Digits 10mm LCD
- Applications Engine Type: Gasoline Engine
- 2-Cycle (1, 2, 3, 4 Cylinder)
- 4-Cycle (1, 2, 3, 4, 5, 6, 8 Cylinder)
- Detection Method: Ignition Spark Noise Detection
- Detecting Object: high-tension wire (ignition cord)
- Detection Distance: 30~200mm
- Range: 50.0~9,999 r/min
- Resolution:
- 0.1RPM (50.0~999.9RPM)
- 1RPM (over 1000RPM)
- Accuracy: ±(0.05% n+1d)
- Connection: PC connection via RS232C interface
- Operating Condition: 0~50°C , <85%
- Power Supply: 2 x 1.5V AAA Battery
- Weight: 65g (including batteries)
- Memory: Max / Min / Last Value
- Size: 97 x 35 x 25mm
Set Includes:
- 1 x Digital Engine Tachometer
- 1 x External antenna
- English User Manual
- Carrying case
