Sprintir-R CO₂ Sensor with 0–5% Measurement Range

Description

The SPRINTIR-R-5 5% CO2 Sensor (formerly known as the GC-0031) is the fastest commercial CO2 sensor on the market.

Capable of measuring up to 5% CO2 levels up to 50 times a second, this sensor is designed for applications where high speed between measurements and fast response time are most important

This sensor is fitted with a standard flow-through adaptor so the CO2 gas can be passed over the optical sensor at high speed using an optional micro-pump.

The SprintIR®-R-5 uses patented NDIR solid-state LED optical technology enabling the sensor to respond to rapidly changing CO2 without compromising performance.

Features

• High-Speed Sensing and Fast Response (50hz)
• Digital (UART) output
• Ideal for Healthcare and Food Packaging applications

Models

• SPRINTIR-R-5 – for integration into high-volume OEM products

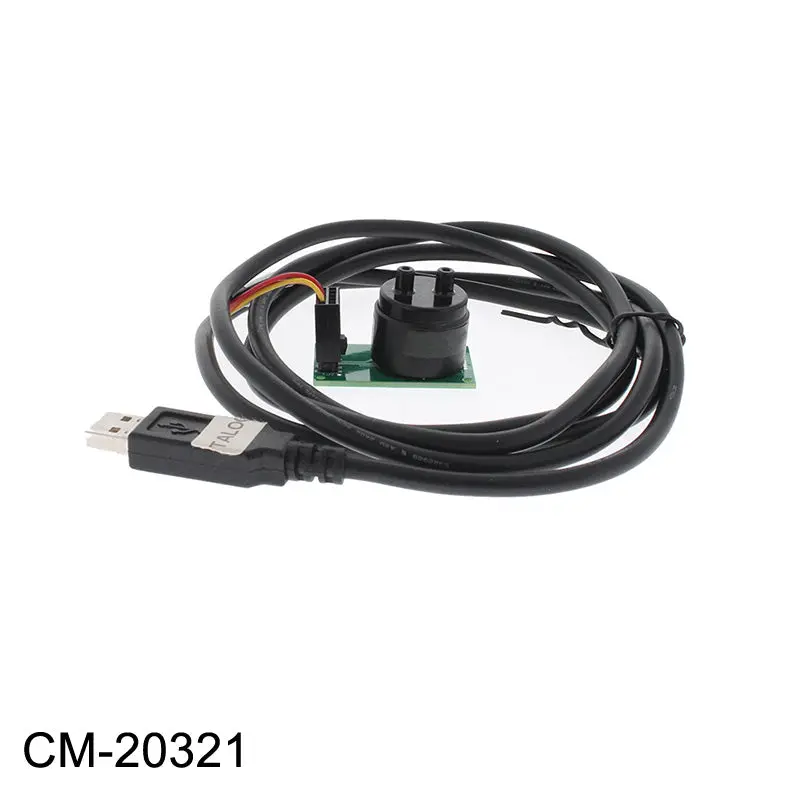

• CM-20321 – SprintIR-R-5 5% CO2 Sensor Development Kit
• Sensor Development Kit (CM-200) – Easy to use, simply plug the sensor into the PCB and plug it into your PC via USB. Use our free GasLab® software to measure and graph carbon dioxide or use our library of source code on Github to build your own application or for OEM batch testing/configuration. Order sensors on this page, then order the Devkit here.

Specifications

• CO2 Sensing Method: Patented solid-state NDIR absorption
• Sample Method: Flow through adapter
• Measurement Range: 0-5%,
• Accuracy: ±70 ppm +/- 5% of reading
• Resolution: 10 ppm
• Measurement noise: < 10% of reading with no digital filtering
• Pressure Dependence: 0.15% of reading per mbar in normal atmospheric conditions
• Operating pressure range: 500mbar to 2 bar with flow through adapter
• Response Time: Flow Rate Dependent
• Update rate: 50 Hz
• Sensor Life Expectancy: > 15 years

Electrical

• Power Input: 3.25 to 5.5V. (3.3V recommended)
• Peak Current: 100mA
• Average Current: <15mA
• Power Consumption: 35 mW
• Communication: UART
• Connector: 4 x 0.5mm sq pins

Warranty

• 90 days – See CO2Meter Terms and Conditions.

Documents

Data Sheet (pdf)

Sensor Manual (pdf)

Mechanical Diagram (pdf)

Quality Certificate – ISO9001 (pdf)

GSS Guide for Sample Draw Pumps (pdf)

SprintIR Speed Comparison Test (pdf)

Additional Application Notes

Accessories:

• Gas Sensor Development Kit (CM-200)- designed to provide customers with an easy drop-in solution. Includes our free Gaslab data logging software. Sensor sold separately.
• CM-0032-6S/R – Custom USB cable enables communication to GasLab Software for Sensor Board and Development Kit.
• Micro-Pump Kit includes all the tools you need to utilize the tube-cap adapters as part of a sampling sensor system.
• Nafion Tubing is a highly selective, semi-permeable membrane to water vapor. If gases inside Nafion tubing are wetter than gases surrounding the tubing, drying will occur. If the surrounding gases are wetter, humidification will occur.
• Micro Gas Sampling Pumps provides a constant flow of air across the sensor with a tube cap – perfect for bench-top testing of sensors for closed-loop sampling applications.
