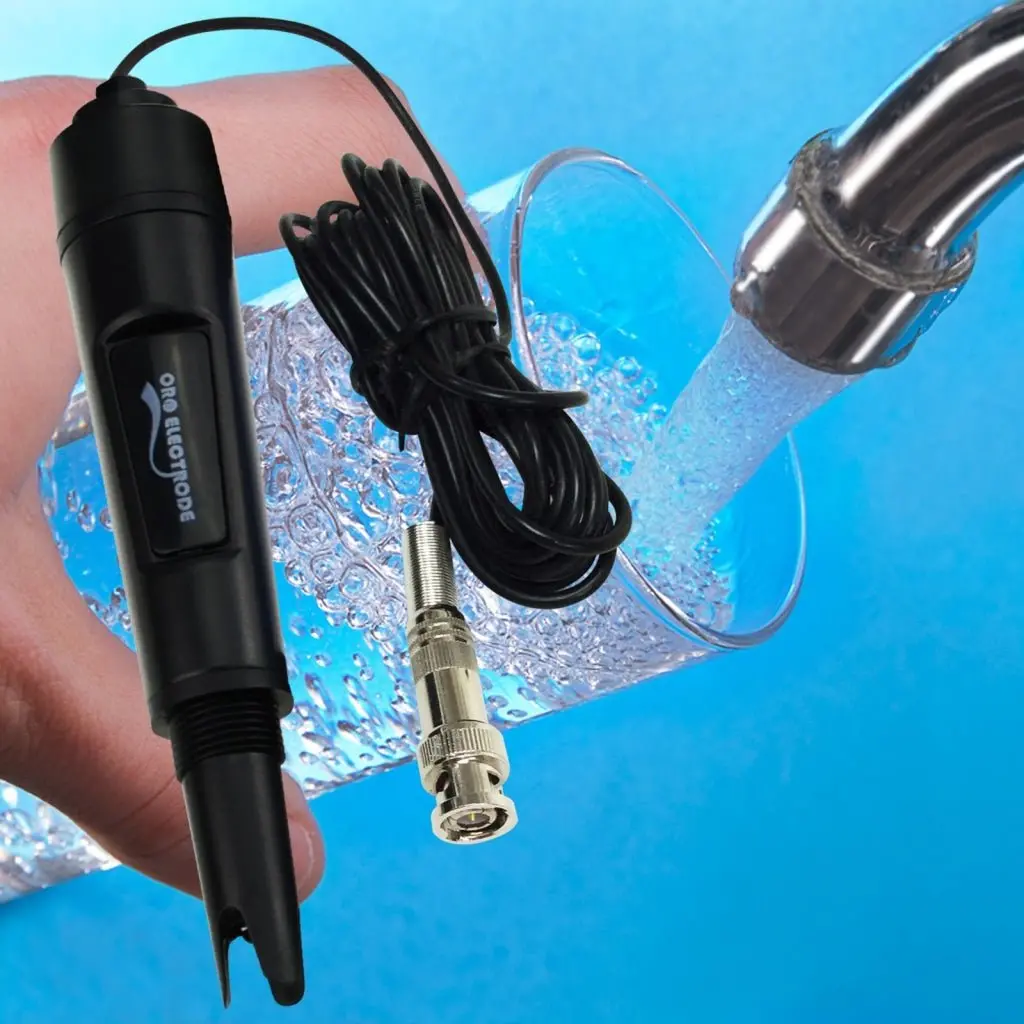

GX-ORP2 Replaceable ORP/Redox Electrode – ±1999 mV Range, 3-Meter Cable for ORP Meters

Description

The detachable ORP/Redox electrode with 50 ohm BNC connector is DURABLE, HEAVY DUTY and possesses a high sensitivity, extremely fast in measurement. It gives you the flexibility to measure a solution in a container as far as 300cm from the meter.

Provides precise redox tension of the solution to be measured to help you determine the status of your tanks, ponds, pools, spas and other general water applications such as drinking, domestic and rain water, aquariums.

Compatible to any handheld meters or controllers with BNC provisions.

Features:

• Durable and heavy duty
• Replaceable ORP electrode is easy to calibrate
• Reliable, stable and transportable
• Simple and comfortable operation
• With long cable for flexibility

Specifications:

• Cable Length: 300cm long
• Measuring Range: 0 ~ ±1999mV
• Resolution: 1mV
• Accuracy: ±0.1% F·S±1 digit
• Connection: 50 ohm BNC socket
• Dimensions: 120mm long × 12mm diameter
• Operating Temperature: 0°C – 50°C ATC
• Weight: 41g

Set includes:

• 1 x 50 ohm BNC Type ORP Electrode
• Standard factory packaging
