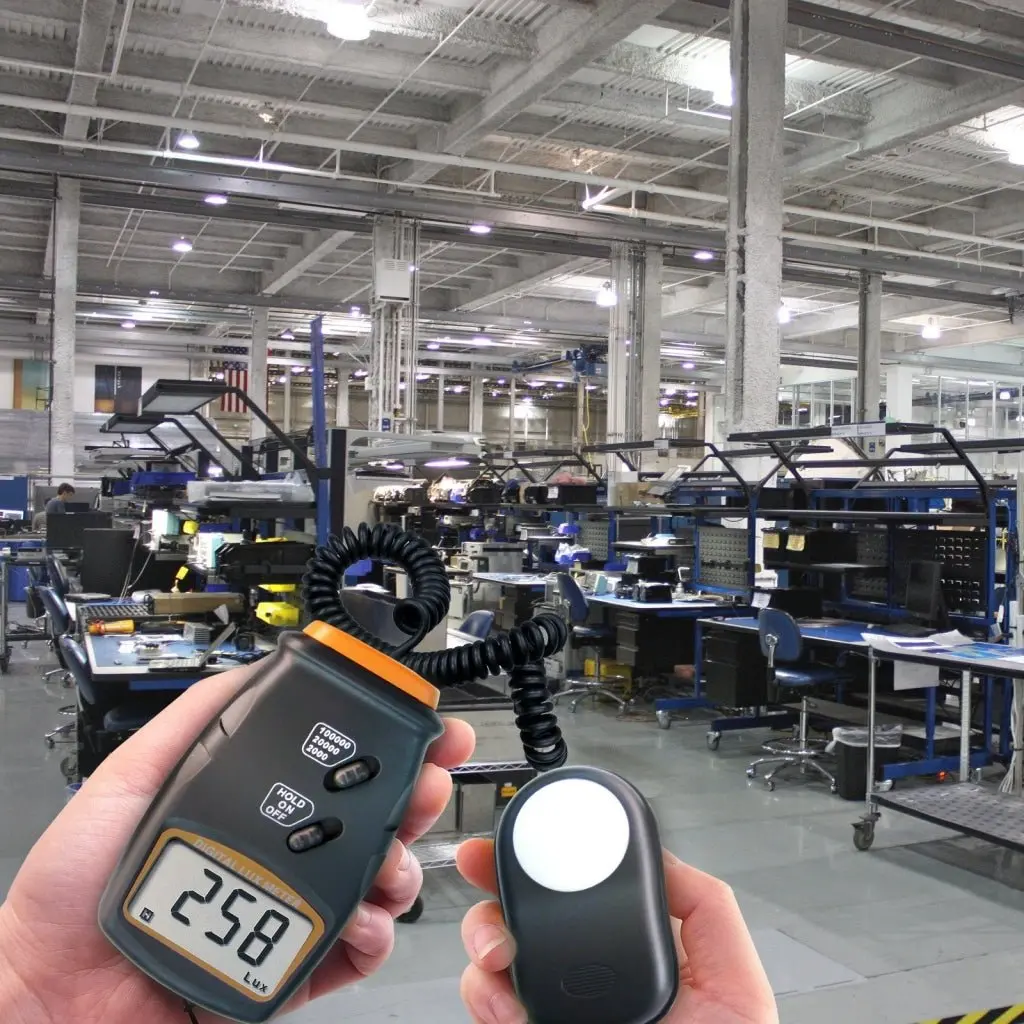

LX-1020B Digital Illuminance Meter – 100,000 Lux Range with LCD Display for Photography, Laboratory, and Lighting Testing

Description

This is a useful device for anyone who wants to measure illumination levels. It senses or detects brightness/lux of any environment. It uses long life silicon diode, spectral response filter and fully corrected for the angular incidence of light to ensure stability. Brightness or light intensity plays a very essential factor in determining the proper exposure for photograph as well as providing correct light intensity for each environment. It reads the intensity of light falling on the subject and measurements are taken from the subject position It has the approval of European Directives for essential health standards and safety requirements, you are assured that using this item is safe.

Quality

• Corrected for Luminous Efficiency function
• Correction factor need not be manually calculated for nonstandard light sources
• With LSI-Circuit to provide high reliability and durability
• With long life silicon photo diode inside

Features

• Data hold function
• CE marking, with approval from the European Directives
• With built-in Low battery indication
• Separate Light Sensor allows user take measurements at an optimum position and convenient testing
• Auto-Range and Auto Zero-Adjustment
• Easy to read, clear & big 4 digits LCD display – in all light conditions
• With built-in Low battery indication
• High accuracy in measuring
• Low in power consumption which gives you more operating hours
• Light and portable
• Comes with instruction manual

Specifications

• Range Coverage is from 0~100, 000 LUX (3 ranges)
• Ranges:
  • 0 – 2,000 LUX
  • 2,001 – 20,000 LUX (Reading × 10)
  • 20,001 – 100,000 LUX (Reading × 100)
• Accuracy:
  0 ~ 10,000             Lux: ±4.0% ±0.5 F.S
  10,000~100,000      Lux: ±5.0% + 10 digits
• Temperature Characteristic :  ±0.1% / °C
• Repeatablity :  ±2%
• Test rate :   0.2 times / sec.
• One silicon photo diode with filter
• Operation temperature-humidity :  0°C to 40°C (32°F-104°F) 0-70% RH
• Storage temperature-humidity:  -10°C to 50°C (14°F-122°F) 0-80% RH
• Over-input :
  • Indication of ” 1″ (2,000 Lux/20,000 Lux)
  • Indication of “OVER” (100,000 Lux)
• Dimension:
  • 106 x 57 x 26mm (photo detector)
  • 230x72x30mm (meter body)
  • 150cm (photo detector lead)
• Power: 9V (6F22) x1
• Weight: 190g

Set Includes

• 1 x Lux Meter
• 1 x Free 9V battery
• 1 x English Instruction Manual
• Standard factory box
