Description

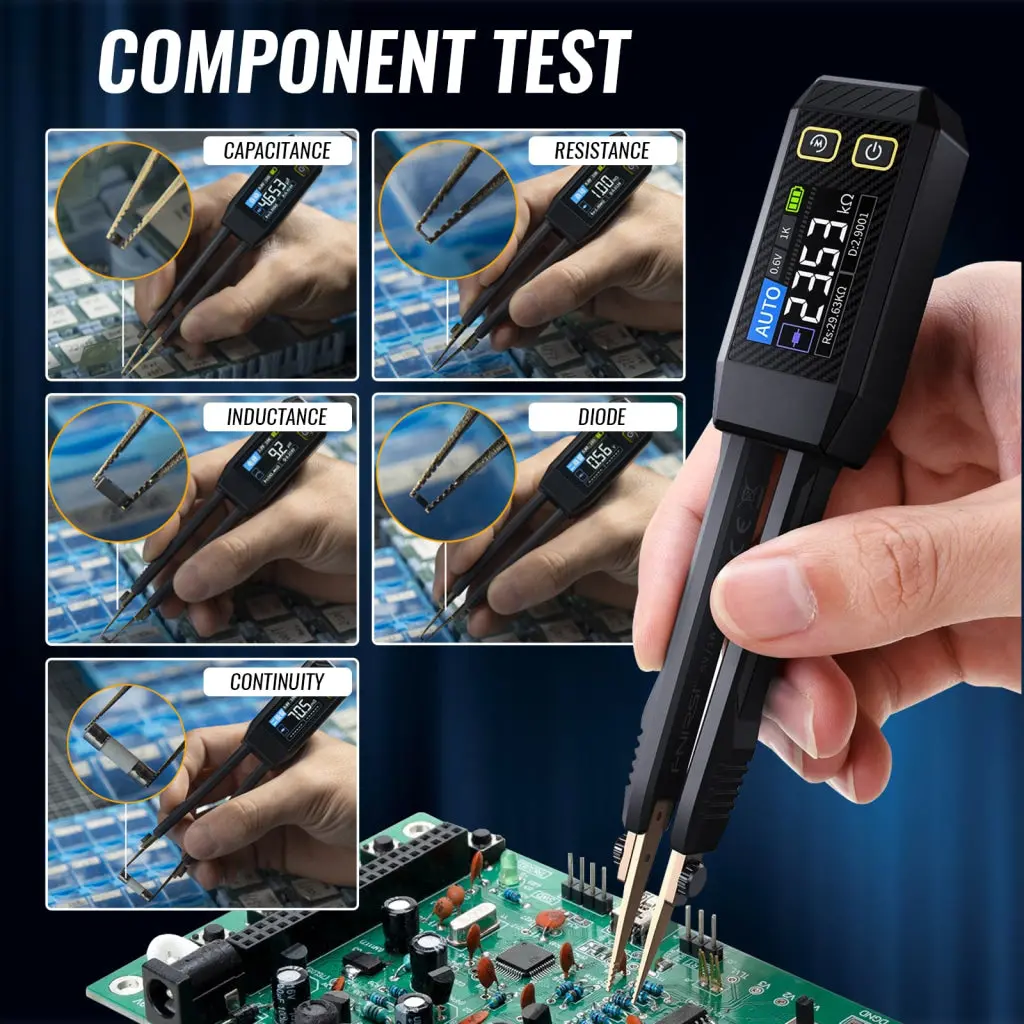

Portable, compact, tweezer-style LCR meter that quickly measures resistance, capacitance, inductance, and diodes with high accuracy. Its ergonomic design is perfect for testing small components in tight spaces, while the 1.14-inch color screen and magnetic back make it easy to use. With a long-lasting battery and three test frequencies (100Hz, 1kHz, 10kHz), it is a must-have tool for engineers, technicians, and hobbyists working in labs or the field.
Features:
- Tweezer-type design
- Data HOLD
- Battery strength indicator
- Dual language (Chinese and English)
- Adjustable volume and screen brightness
- Restore Factory Setting option
- Magnetic feature
- Rechargeable battery
Specifications:
- Screen Display: 1.14-inch colored screen
- Volume Adjustment: 0-5 Level
- Screen brightness adjustment: 0-100 progress bar
- Automatic Off Function: Adjustable to 5/15/30 min with no operation
- Power voltage: 250mAh rechargeable lithium battery
- Charging Specification: USB Type-C, 5V/1A
- Dimension: 28 x 19 x 150mm
- Weight: approx. 41gms
Technical Specifications
| Type | Range | 100Hz | 1KHz | 10KHz |
| Capacitance | 1mF-22mF | 5%reading±3 | 5%reading±3 | — |
| 1uF-1mF | 2%reading±3 | 2%reading±3 | 2%reading±3 | |
| 1nF-1uF | 2%reading±3 | 0.5%reading±3 | 0.5%reading±3 | |
| 1pF-1nF | — | 2%reading±3 | 2%reading±3 | |
| Inductance | 1H-10H | 5%reading±3 | 5%reading±3 | — |
| 1mH-1H | 2%reading±3 | 2%reading±3 | 2%reading±3 | |
| 10uH-1mH | 2%reading±3 | 0.5%reading±3 | 0.5%reading±3 | |
| 1uH-10uH | — | — | 2%reading±3 | |
| Resistance | 1MΩ-10MΩ | 5%reading±3 | 5%reading±3 | — |
| 1KΩ-1MΩ | 1%reading±3 | 0.5%reading±3 | 1%reading±3 | |
| 1Ω-1KΩ | 1%reading±3 | 0.5%reading±3 | 0.5%reading±3 | |
| 10mΩ-1Ω | 2%reading±3 | 2%reading±3 | 2%reading±3 |
Set Includes:
- 1 x LCR Meter
- 1 x USB Type-C Charging Cable
- English Instruction Manual
- Standard Factory Packaging
