Description
The product uses a highly integrated microcomputer chip and dedicated electricity metering chip in combination with highly precise current sensor and LCD display to recognize overall monitoring of electric equipment.

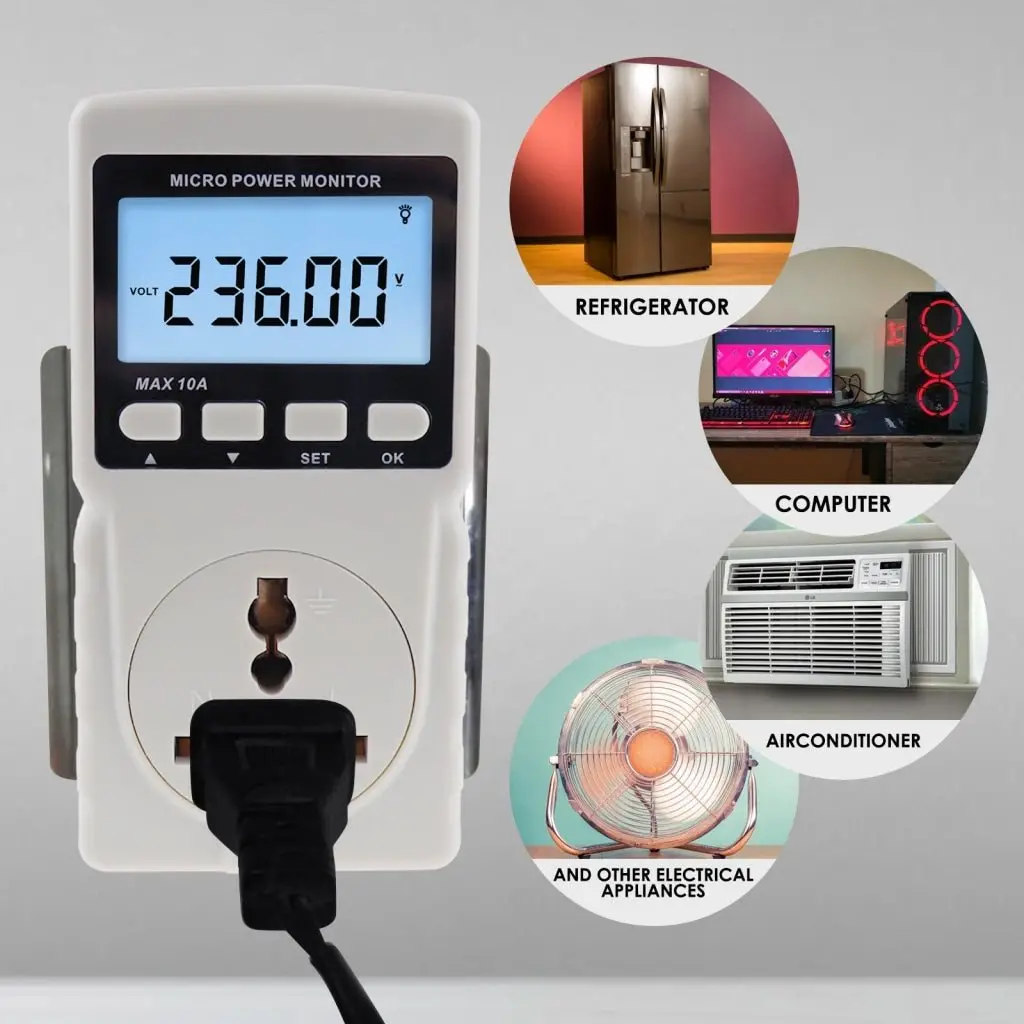

Application: Can be used in schools, offices, laboratories, factories and even at home to monitor power consumption of a connected or standby appliance.
Features:
- Backlight function that can be switched ON/OFF
- Large LCD display
- Monitor the current value of active power
- Monitor current voltage / current / frequency
- Record the power supply time
- Record the power consumption
- Calculate Carbon Dioxide (CO2) emissions volume
- Power factor pick up
- Overload alarm and threshold setting
Specifications:
- Working voltage range: 100~260V
- Maximum rated current: 10A
- Maximum power: 2200W
- Measurable range: 0.2~2200W
- Maximum accumulated electric quantity: 99999KWh
- Maximum accumulated time: 99999minutes
- Power factor: 0.001~1.000
- Backlight function: can set ON/OFF
- Precision: Level 1.0
- Constant: 6400imp / kWh
- Power dissipation: <1W
- Working temperature: 0~45°C
- Storage temperature: -20~60°C
- Size: approx. 60 x 55.7 x 120mm
- Weight: approx. 129.6g
Set Includes:
- 1 x Micro Power Monitor
- Standard Factory Packaging
