Description

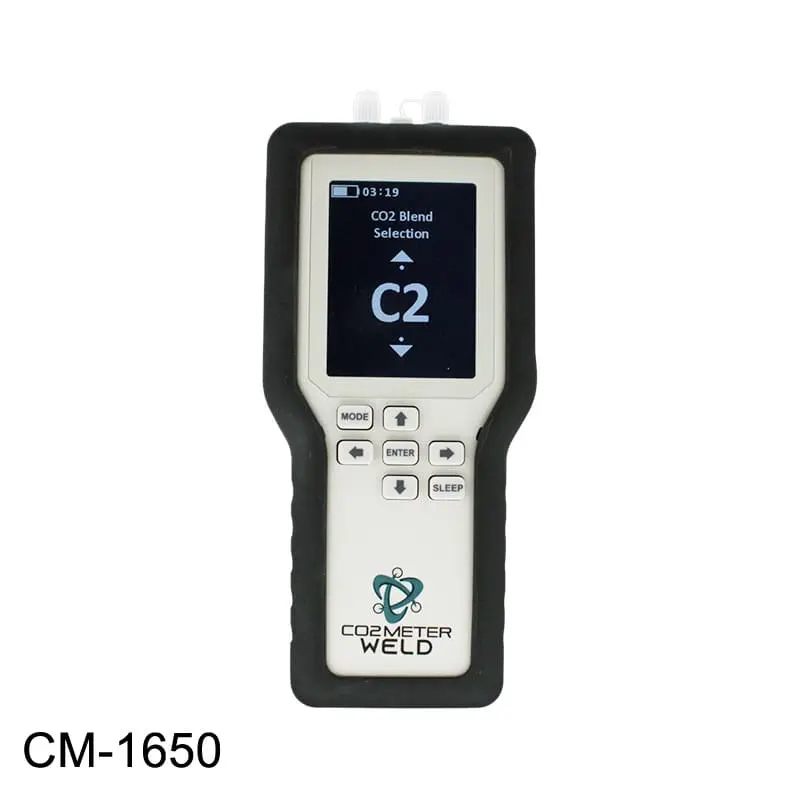

The CM-1650 Portable CO2 Welding Gas Analyzer is designed to provide advanced analysis of active welding gas blends that contain 0-100% carbon dioxide and set the main target for AWS accuracy standards.
Features
- Fast and Precise CO2 Measurements 0-100%
- Create custom selection for individual concentration range
- Gain UNLIMITED data logging to a Micro SD Card
- Included quality Li-ion rechargeable batteries
Models
- CM-1650 – CO2 Welding Gas Analyzer
- CM-1652 – CO2 + O2 Welding Gas Analyzer
Warranty
- 1-year warranty – see CO2Meter Terms & Conditions
Specifications
- CO2 Measurement Range: 0-100%
- Measurement Targets: C2, C10, C15, C25 and C50 (custom options available)
- Custom Targets: C5, C20, C30, C35, C40, C45, C50, C55, C60,
- C65, C70, C75, C80, C85, C90, C95, C100
- Accuracy: @100% Range: ±300 ppm +/- 5% of reading @ STP
- Sample Method: Flow through
- Operating Temperature: 0°C-50°C (32°F-122F°) to 95% RH, non-condensing
- Battery: (QTY-3) Li-ion rechargeable batteries, 30+ hours per charge
- Resolution: 0.1%
- Dimensions: W 8.25”H 1.5” D
- Sensor Life Expectancy: > 15 years
- Weight: .67 lbs. (+305 g)
Documents
Data Sheet (pdf)
Manual (pdf)
Quick Start Guide (pdf)
CM-1650 FAQs (pdf)
CM-1650 Video Playlist – Unboxing, Quick Start Operation, Settings
