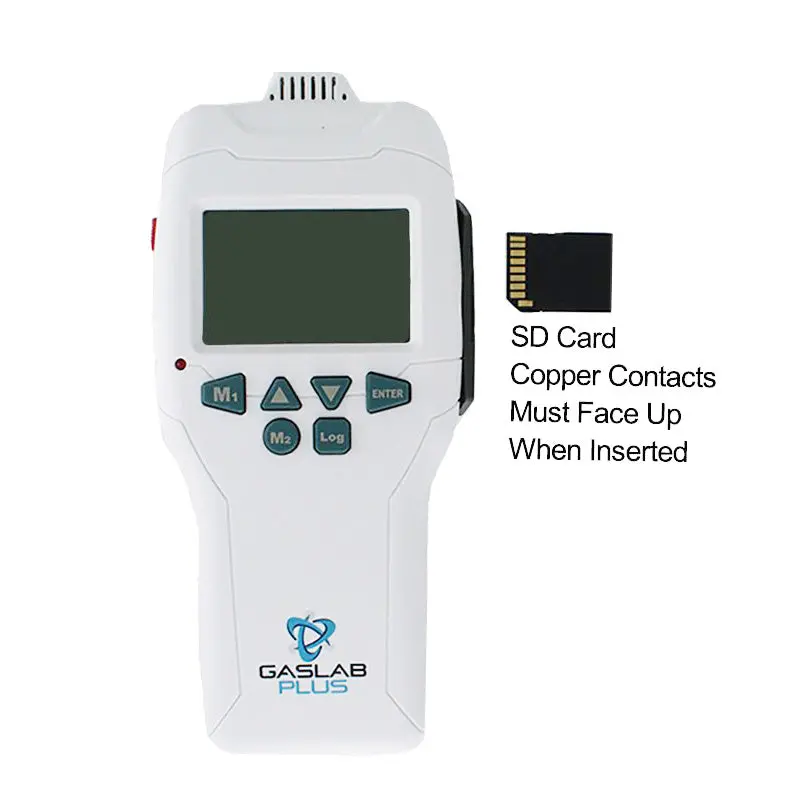

Multi-Gas Monitor for Carbon Dioxide and Ammonia in Farming Environments

Description

The Carbon Dioxide and Ammonia Gas Detector is a multi-gas solutions designed for indoor agriculture applications like poultry farms who need to measure gases and gain long-term data storage capabilities.

Features

• Dual Beam NDIR or EC technology to measure gas concentrations
• Large LCD display for easy readability
• Audible Alarm
• Data Logging with 16GB SD Card
• Li-ion rechargeable batteries included

ABOUT CO2 STORAGE SAFETY CODES

This device will NOT meet requirements for CO2 safety monitoring which requires a Fixed/Wall mounted, hard-wired alarm per the NBIC, NFPA, or IFC regulations. Refer to our CO2 Safety Products page for devices that meet your needs.

Call us at (877) 678-4259 toll-free or email us to speak with our technical sales team about purchasing the correct device.

Applications

• Food and Beverage
• Breweries and Wineries
• Poultry
• Agriculture
• Safety

Specifications

• Measures: CO2, NH3, PM2.5, PM10
• Sensing method: NDIR (CO2) and EC (NH3)
• CO2 Measurement range: 0~9999 ppm
• NH3 Measurement range – performance indicator only
• PM2.5, 10 Measurement range: 999 ug/m3 (whichever is great)
• CO2 Accuracy: ± 50ppm, ± 5% of reading (0~5,000 ppm)
• NH3 Accuracy: ±10%
• PM2.5,10 Accuracy: ±15% or ±15 μg/m³ (greater
• Temperature: 0~50°C,±1℃
• Power Supply: 3 Rechargeable Batteries – Li-ion 18650 3.7V
• Battery Life: tested to 24+ hours
• Life Span: up to 15 years (NDIR) or up to 2 years (EC)
• Dimensions: 204.5 x 91.7 x 49.6 mm (8.1 x 3.6 x 2 inch)
• Weight: 305g (without batteries)

Includes

• CO2 and NH3 Multi-Gas Detector
• Manual
• USB Charging Cable
• SD Card (16g), Data Logging Capability
• Three (3) Li-ion rechargeable batteries

Warranty

• 1 year – See CO2Meter Terms and Conditions

Documents

Datasheet (pdf)

Manual (pdf)

Software Options

This device features data logs that are stored to a micro SD Card. The GasLab® Software is not compatible with this device

• BAT-18650 – EBL 18650 3.7V Li-ion Rechargeable Batteries

EBL Intelligent Batteries (need 3 for device) provides a fast charge and are upgraded ETL certified to be used with all CM-500 series handheld gas detectors.

• EBL Universal Battery Charger for 3.7V Rechargeable Batteries

With the EBL Universal Battery Charger, users will be able to charge the lithium batteries when plugged into a USB outlet. The battery charger also provides a clear indication of charge levels, turning green after fully charged.
