Description
Features

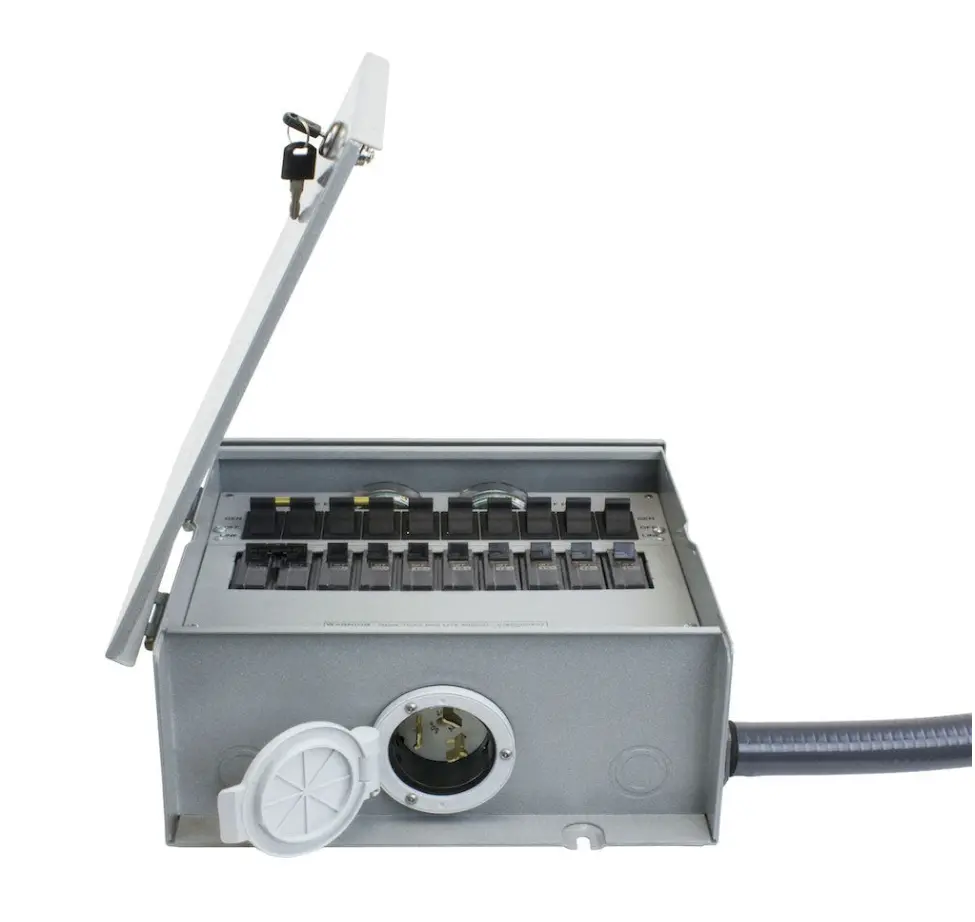

- Pro/Tran 2 50A 10-Circuit 120/240V Outdoor Manual Transfer Switch
- The next generation of Load side manual transfer switches
- Non-Defeat able (Break-Before-Make) Double-Throw Switch
- Eliminates dangerous back feeds and electrical overloads
- 10 Total Circuits (1″) Interchangeable Style)
- (1) 20A 2-pole, (2) 20A 1-pole and (6) 15A 1-pole
- NEW Color-Coded Built-In Analog Wattmeter
- Helps you balance and manage generator load
- Factory Installed 50-Amp (CS6375) Power Inlet w/ Flip-Lid
- Easily connect your generator cord on bottom of switch
- NEMA 3R Powder-Coated Steel Cabinet For Outdoor Installation
- Gasketed design, provides liquid tight protection in all seasons
- Key lockable door prevents tampering and unauthorized use
- 16″ Flexible, Non-Metallic Liquid-Tight Conduit (1″) w/ Fittings
- (5) Combination 1/2″ and 3/4″ knockouts for easier installation
- Factory-marked, color-coded wires simplifies installation
- Safety and Certifications
- Certified for use by Underwriter Laboratories to UL Standard 1008
- Meets all requirements of article 702 of the NEC ANSI/NFPA 70
What’s in The Box
- Reliance Pro/Tran-2 50 Amp 120/240V 10 Circuit Outdoor Transfer Switch – R510A
- Owner’s Manual
Warranty
- 5 Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| SKU | R510A |
| Brand | Reliance |
| Product Specs | |
| Model | Pro/Tran-2 |
| Voltage | 120/240V single phase |
| Rated Watts | 12500 Watts |
| Rated Amps | 50 |
| Enclosure | NEMA 3R |
| Conduit Length | 16 |
| Number of Circuit Breakers | 10 |
| UL Listed | Yes |
| Transfer Switch Circuits | |
| 15A 120V | 6 |
| 20A 120V | 2 |
| 20A 240V | 1 |
| Circuit Breaker Protection | Each Circuit |
| Overview | |
| Length | 13 in |
| Width | 12 in |
| Height | 5 in |
| Weight | 18 lbs |
