Description

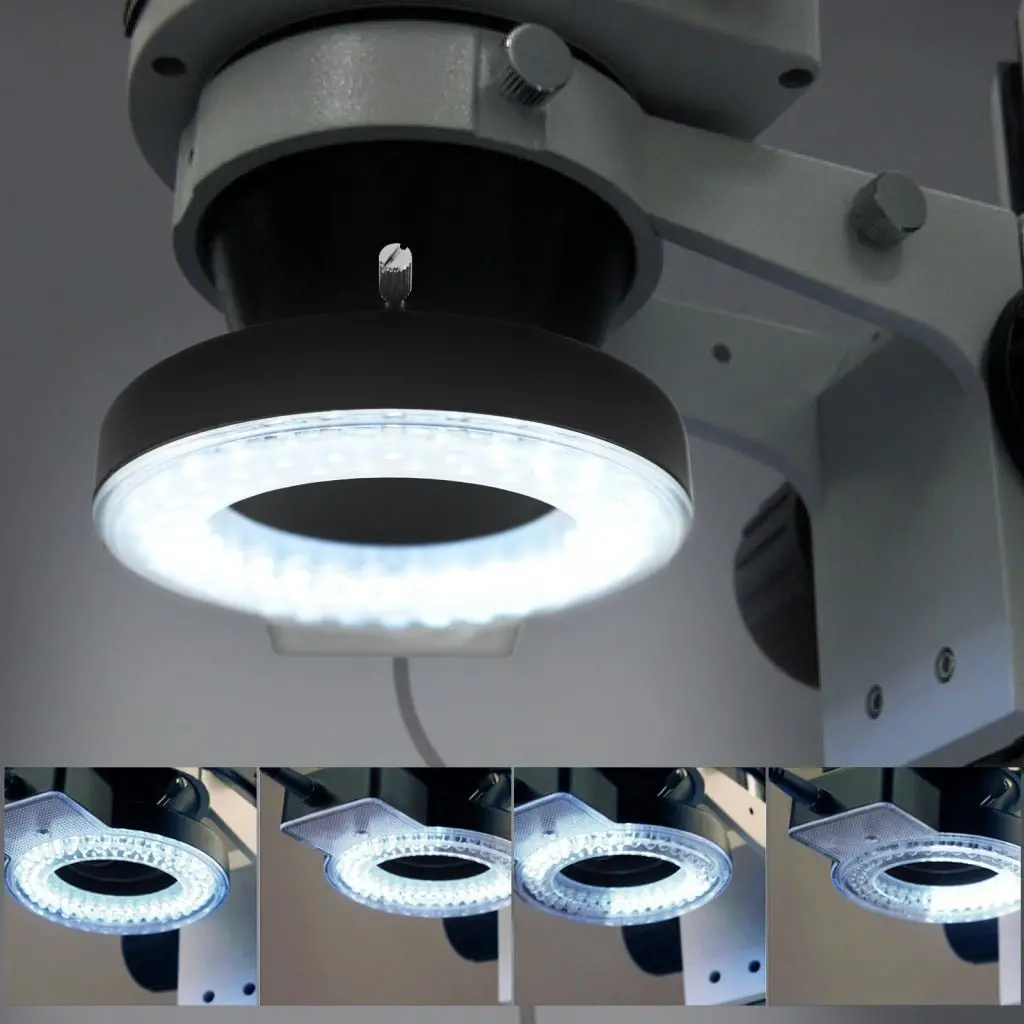

This sectional ring light features lighting control in each of the unit’s four quadrants or zones, a 60mm inner diameter, and 60 LEDs that comes with a 48mm (thread diameter) ring adapter. The adjustable Brightness and segments or zones can be controlled from the panel on top of the unit. Works with variety of voltage power supplies from 100V to 240V.
An ideal durable cool light source for microscopes and cameras. Provides cool, even, intense, focused shadow-free illumination, and natural color light for a various incident light applications. User can install the polariscope when needed. Best for large field of view applications, including quality assurance, biomedical imaging, and precision assembly.
Features:
- 4-zone control, allows users to direct the light from 4 separate quadrants
- 8-step variable intensity light control
- Intensity control (soft , with no flicker and good consistency)
- 3 fixing screws to connect matching various microscope bodies in different sizes
- Cold white LED bulbs with 6500°K color temperature
- Lower power consumption and lasts longer compared to halogen lamps
- Reduces ray interfere and enhance image quality
- Brightness at height around 8500Lux at 100mm working distance
- 10,000 hours of life
- Fits from 40mm-60mm mount ring
- Focused bright shadow free illumination
- Large inner diameters for easy mounting
Specifications:
- LED Quantity: 60pcs
- Input: AC 100V~240V
- Output: DC 12V
- Housing material: Aluminium
- Right Light: 60mm I.D. (Inner Diameter) and 100mm O.D. (Outer Diameter)
- Adapter Ring Mount Diameter: 45mm (inside) 48mm (thread) 56mm (outside)
- Power input: 100-240V, 50-60HZ, auto switching
- Wattage: 4W
- Size: 13 x 10cm (main unit) 5.6 x 5.6cm (Adapter)
- Weight: 150g (including adapter)
Set Includes:
- 1 x 60-LED Ring Light with Control Panel
- 1 x 48mm Ring Adapter
- 1 x Power Cable US Plug
