SBRH-5A 5% Methyl Bromide Detection Sensor – Cubic Design

Description

The SBrH-5A Cubic 5% NDIR Methyl Bromide Gas Sensor by Cubic detects 0-5% levels of  CH3Br methyl bromide gas in ambient environments.

Features

• Measures 0 to 5% Methyl Bromide by Volume
• Long-life NDIR sensor
• Built-in temperature and humidity compensation
• Auto-Baseline calibration can be enabled
• Precise measurement and stable performance
• ATEX rated for combustible environments
• Serial UART and analog voltage outputs
• Life expectancy > 10 Years

Applications

• Industrial Safety
• Fumigation
• Chemical
• Oil & gas
• Gas drainage monitoring
• Liquefied gas station or transport

Models

SBrH-5A Methyl Bromide Sensor 0-5% methyl bromide gas sensor, with ‘A’ housing.

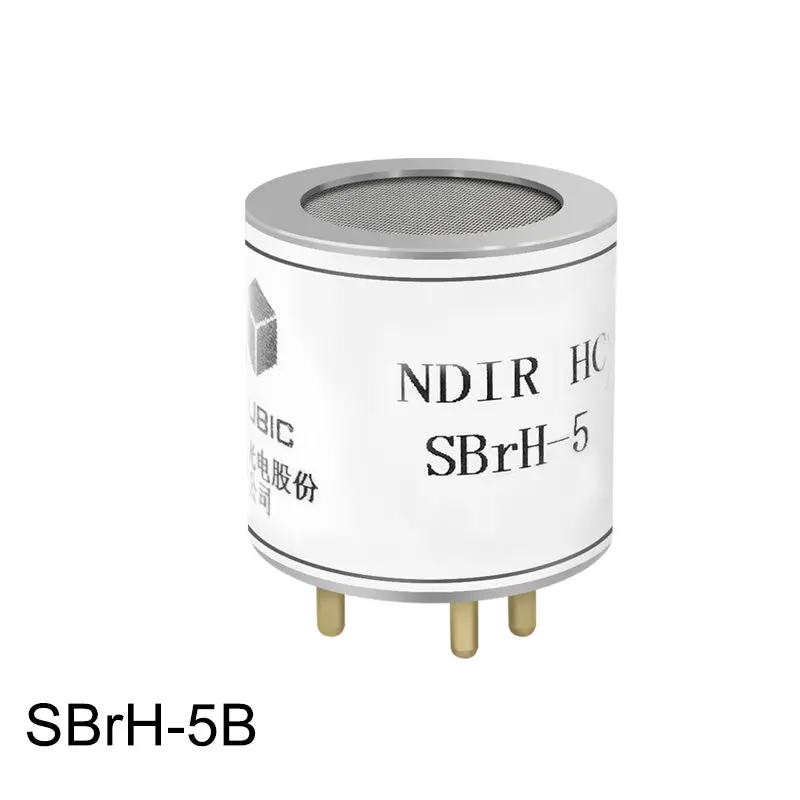

SBrH-5B Methyl Bromide Sensor 0-5%, complimentary design with ‘B’ housing.

Specifications

• Measuring Gas: Bromomethane
• Sensing Method: NDIR
• Measurement Range: 0-5% Vol
• Measurement Resolution: 0.01%
• Accuracy: ± 0.06% @ 0-1%, ± 6% @ 1% to FS
• Rate of Measurement: 1 sec
• Warm-up time: < 30 sec
• Response Time T90: < 25 sec
• Zero Repeatability: ± 2% at FS
• Zero Drift: 2% FS/month
• Working Temperature: -40° ~ 70°C (-40°F-158°F)
• Working Humidity: 095% RH (Non-condensing
• Storage Temperature: -40° ~ 85°C (-40°F-185°F)
• Working Voltage: 3.3-6VDC
• Working Current: 55-60mA
• Peak Current: 360-400mA @ 5VDC
• Working Pressure: 30~130kPa
• UART Settings: 9,600, 8,N,1
• UART Output: 2.5-3.3V UART-TTL
• Analog Output: 0.4V-2VDC
• Dimensions: 20x19mm (0.79×0.75in)
• Body Material: Stainless Steel
• Weight: 18g
• Output footprint: 5 pins
• Sensor Life Span: > 10 years
• Ex-proof Level: Ex ia IIC T4 Ga GYB19.1789

Warranty

• 90 Days. See CO2Meter Terms and Conditions

Manual (pdf)

Sensor Pin Sockets – Manufacturers do not recommend soldering to the pins. Pin sockets can be purchased from Andon Electric. Click here to see the PDF of all Cubic sensors pin sockets available.
