SRT-6210 Portable Digital Surface Roughness Measuring Instrument with Ra, Rz, Rq, and Rt Analysis

Description

This multi-parameter tester designed to measure 4 parameters (Ra, Rz, Rq, Rt) using the built-in Diamond pin probe. This tester is widely used in production site to measure surface roughness of various machinery-processed parts and calculate corresponding parameters according to selected measuring conditions and clearly display all measurement parameters in Metric or Imperial. It also have 4 wave filtering methods (RC, PC-RC, GAUSS & D-P) and memorize 7 groups of measurement results & conditions for for use at a later time.

Features:

• Multiple parameter measurement: Ra, Rz, Rq, Rt
• Highly sophisticated inductance sensor
• The sensor sliding along the surface by driving the mechanism
• Four wave filtering methods : RC, PC-RC, GAUSS and D-P
• Built-in lithium ion rechargeable battery and control circuit with high capacity
• Small in size, light in weight and easy to use
• Option to communicate with PC computer for statistics, printing and analyzing via the optional cable and software for RS232C interface (optional, not included in the set)
• Manual and Auto switch off
• Memorize 7 groups of measurement results and conditions
• Metric / Imperial Conversion
• Exclusive DSP processes to output measurement results on LCD
• Circuit with high capacity
• Compatible with four international standards ISO, DIN, ANSI and JIS
• Applicable in production site, laboratory and workshop in factory
• Easy operation menu and large LCD display

Specifications:

• Multiple parameter measurement: Ra, Rz, Rq, Rt
• Filtering methods: RC, PC-RC, GAUSS and D-P
• Measuring Range
  • Ra, Rq : 0.005~16.00 um / 0.020~629.9 uinch
  • Rz, Rt :0.020~160.0 um / 0.078~6299uinch
• Accuracy:<=10%
• Repeatability: <= 6%
• Fluctuation of display value: <= 6%
• Sensor
  • Test Principle: Inductance type
  • Material of Probe Pin: Diamond
  • Radius of Probe Pin: 5µm
  • Dynamo-measurement of Probe: 4mN(0.4gf)
  • Vertical Radius of Guiding Head: 48mm
  • Probe Angle: 90°
• Maximum driving stroke: 17.5mm / 0.7inch
• Cutoff Length: 0.25mm / 0.8mm / 2.5mm optional
• Evaluation length 1-5 cut-off optional
• Driving speed
  • sampling length = 0.25mm Vt=0.135mm/s
  • sampling length = 0.8mm Vt=0.5mm/s
  • sampling length = 2.5mm Vt=1mm/s
  • returning Vt=1mm/s
• Resolution:
  • 0.001µm if reading <10µm
  • 0.01µm if 10µm =reading <100µm
  • 0.1µm if reading =100µm
• Data output: communicate with PC through RS232C interface (optional, not included in set)
• Store memory: 7 groups of measurement
• Metric / Imperial Conversion
• Display: 4 digits, 10mm LCD with blue backlight
• Power Li-ion battery: rechargeable
• Operating conditions
  • Temperature: 0~50°C
  • Humidity: <85%
• Auto & Manual switch off

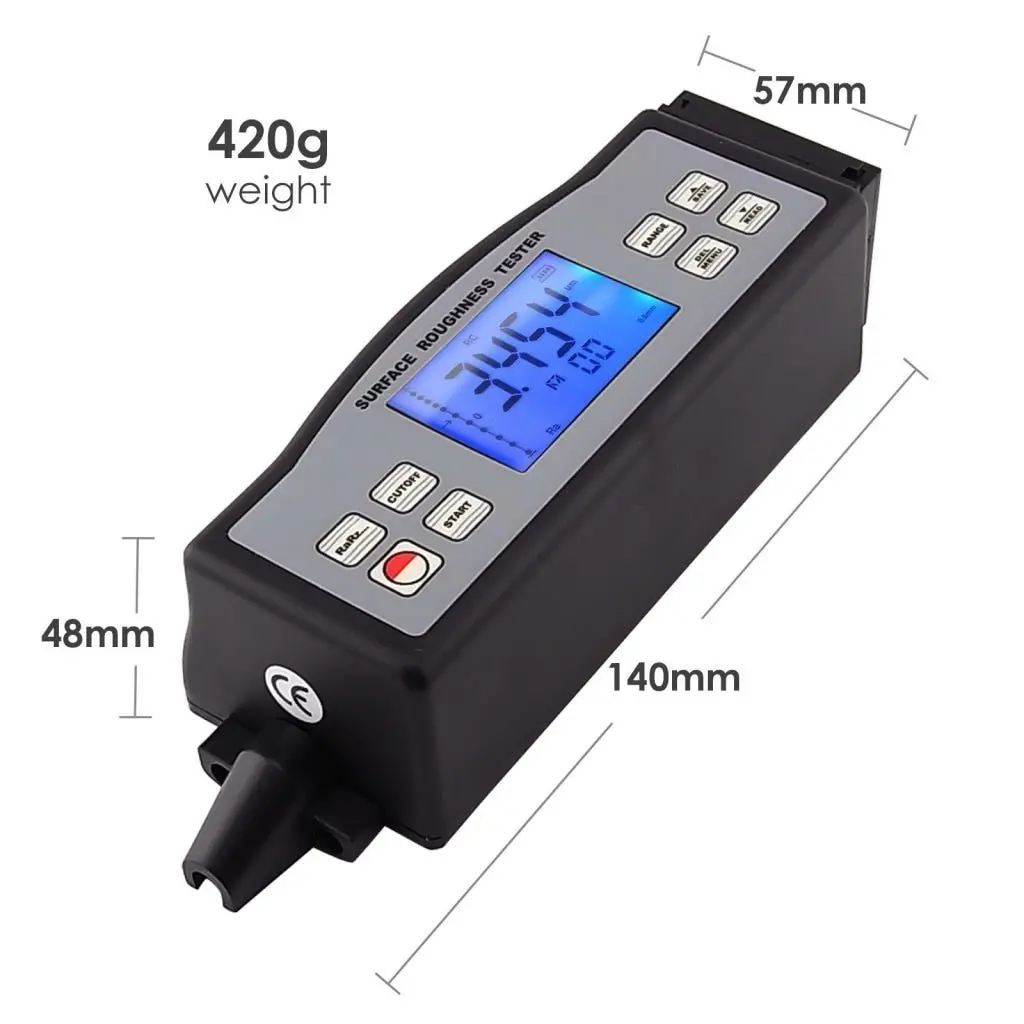

• Size: 140 x 57 x 48mm (5.5 x 2.2 x 1.9 inch)
• Weight: about 420g

Set Includes:

• 1 x 4 Parameters Digital Surface Roughness Tester
• 1 x Carrying Case
• 1 x Standard Sensor
• 1 x Standard Sample Plate
• 1 x Operation Manual
• 1 x Screwdriver
• 1 x Adjustable Leg
• 1 x Sensor Protector
• Power Adapter (choose 1 from these available Adapter for US, UK, Australia and Europe system)

Optional Item (not included in set)
Please click here to buy this optional item RS-232 Software & Cable
          or you may contact us at sales(at)gainexpress.com if you want an optional items to be included in your order
