VMC-606 Portable Vibration Calibrator for Accelerometer Testing and Machinery Health Monitoring

Description

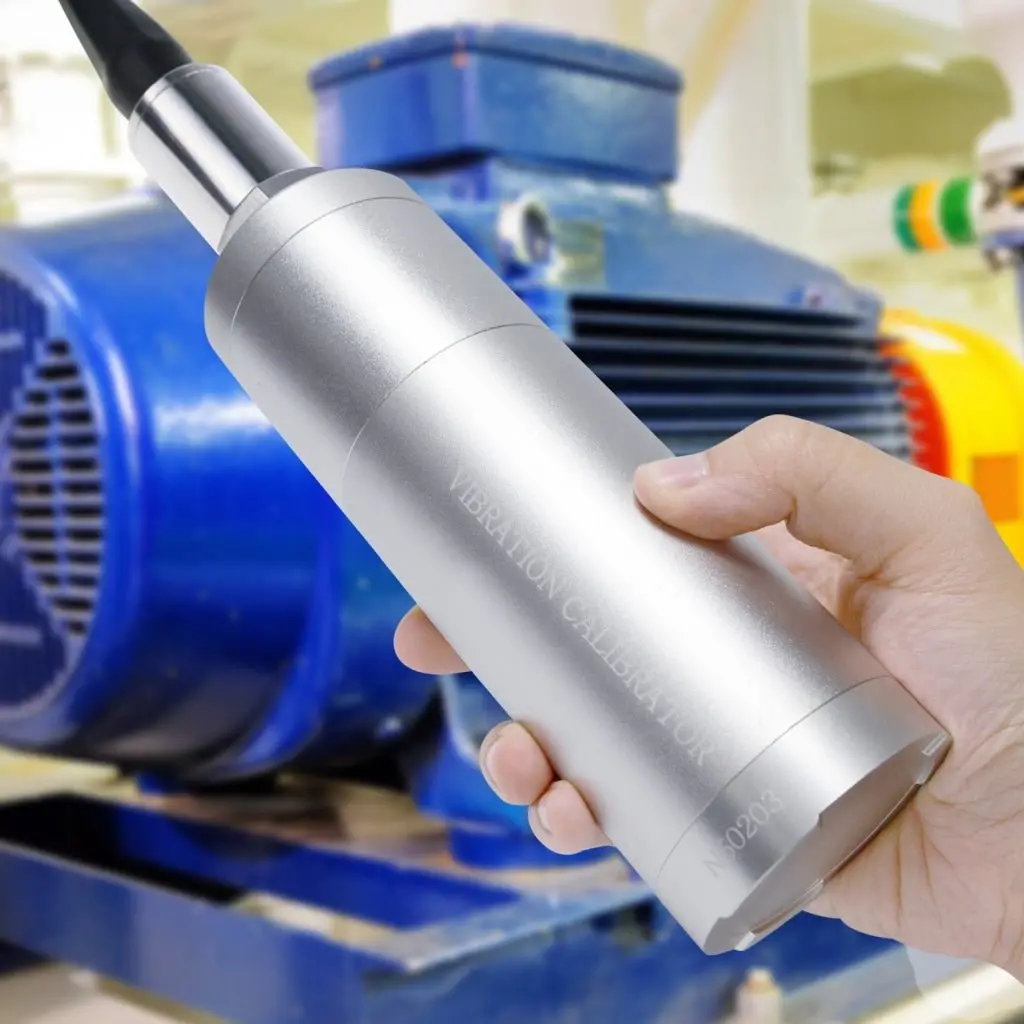

The Vibration Calibrator is a small, self-contained handheld shaker, designed for quick and easy checking of accelerometers, vibration monitoring systems, and recording systems. Provides known and controlled RMS vibration for verification of accelerometers weighing up to 150g.

Features:

• CE-compliant and user friendly
• Light in weight and easy to carry
• Drives vibration sensors up to 150g
• For vibration acceleration, velocity, and displacement
• Supplied with a carrying case, allowing convenient handling and safe transport

Specifications:

• Operating Frequency: 159.2Hz ±0.5%
• Acceleration Output: 14.14m/s²(Peak) ±3%
• Velocity Output: 10mm/s(RMS) ±3%
• Displacement Output: 28um(Peak-Peak) ±4%
• Transverse Output: <5%
• Distortion: <3%
• Maximum Load: 150g
• Operating Temperature: -10~40°C
• Operating Humidity: 85% RH (non-condensing)
• Ramp-Up Time: <3second
• Power Supply: 4×1.5V AA battery
• Size: 56 x 200 mm
• Weight: 960g (battery included)

Set Includes:

• 1 x Vibration Calibrator
• 1 x Screwdriver
• 1 x English Instruction Manual
• Carrying Case
