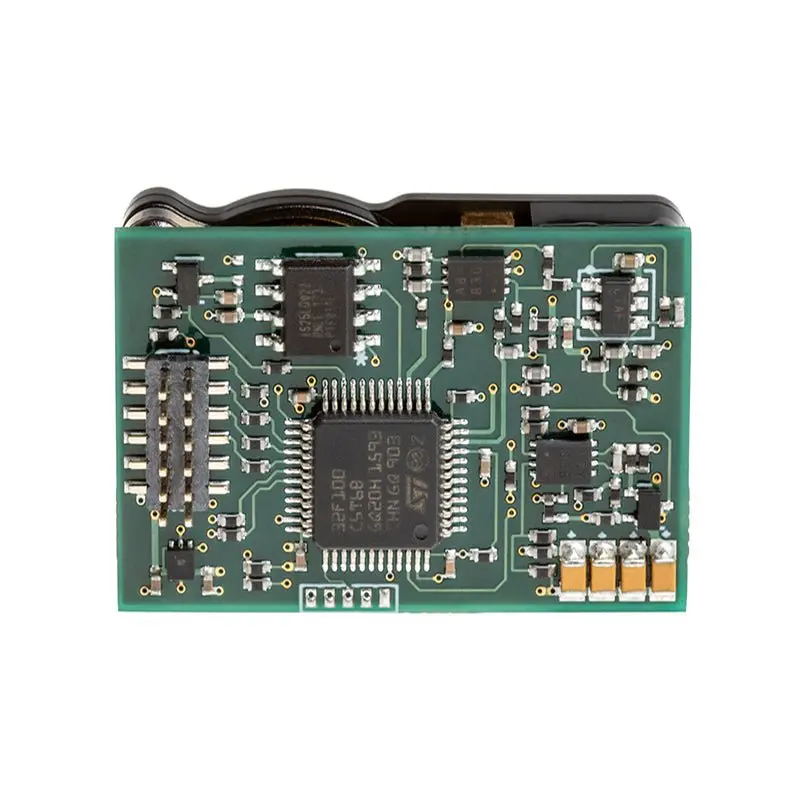

Cozir LP2 Low-Power CO₂ Sensor – 5000 ppm Range

Description

The CozIR®-LP2-5000 (formerly known as the GC-0034) holds the lowest power and longest lifespan of an infrared CO2 sensor available today. This sensor is perfect for IAQ, DCV and HVAC applications or gas monitoring detection systems.

Features

• Measures up to 1% CO2 concentration
• Digital (UART) and I2C Output
• Up to 50X lower power than typical NDIR CO2 Sensors
• Supports energy-efficient smart home environments

Models

• COZIR®-LP2-5000 – designed for low concentration CO2 environments with measurement ranges from 0-2000 ppm, 0-5000 ppm, and 0-1%.

Specifications

• CO2 Measurement: Patented Solid-state NDIR absorption
• Sample Method: Diffusion
• Measurement Range: 0-2,000 ppm, 0-5000 ppm, 0-1%
• Accuracy: ±(30ppm, +3% of reading)
• Time to 1st Reading: <1 second
• Calibration: Auto calibration
• Resolution: 1ppm
• Pressure dependence: 0.15% of reading per mbar (normal atmospheric)
• Operating pressure range: 500mbar – 10 bar
• Response time: <30 secs (diffusion limited)
• Sensor Life Expectancy: > 15 years

Electrical/Mechanical

• Power Input: 3.25 to 5.5V. (3.3V recommended)
• Power Consumption: <3.5mW @ 3.3V
• Connector: 2 x 6-way 1.27mm header
• Communication: UART, I2C

Warranty

• 90 days – See CO2Meter Terms and Conditions.

Documents

Data Sheet (pdf)

 Manual (pdf)

 Quality Certificate ISO9001 (pdf)

Dimensional Drawings (pdf)

Case Studies

• Measuring CO2 Buildup and Mask Respiration

Free Easy-to-use GasLab® Software

This device uses GasLab® software for setup, calibration, data logging, and real-time data analysis. GasLab® makes it easy to export data into a .CSV file that can be imported into any industry-standard software or spreadsheet. GasLab® runs on Windows XP or higher, and free to use with our products.

System Requirements for Data Logging or Changing Defaults

• Windows XP SP2 or newer
• Microsoft .Net 3.5 Runtime Libraries
