K33 ICB CO₂ Sensor — 10% Full-Scale Range

Description

The (033-9-0023) K33 ICB CO2 sensor (formerly known as SE-0025) measures up to 10% carbon dioxide in biological or scientific applications where  high levels of CO2 are maintained in an enclosed environment.

Features

• Long-life NDIR CO2 Sampling Sensor
• Individually calibrated for peak performance
• Easy communication using industry standard I/O
• Properly configured, can take a sample containing almost 100% humidity

Models

• 033-9-0023 K33 ICB 10% CO2 Sensor Only – for integration into high-volume OEM products. Contact us directly for wholesale pricing on large quantities of this sensor. For our K33 ICB 30% CO2 sensor click here.
• CM-0058 K33 ICB 10% CO2 Sensor Development Kit – Easy to use, simply plug the sensor module into your PC via USB. The Devkit includes a K33 ICB sensor with pre-soldered connectors that provide power and connectivity. Use it for evaluation, rapid application development or for experiments. Uses our free GasLab® software to measure and graph carbon dioxide, to configure the sensor or for data logging.

Specifications

• Measurement Range: 0 – 100,000 ppm (0-10%)
• CO2 Measurement: Non-dispersive infrared (NDIR)
• Response Time: < 20s, sampling @ 0.2 l/min gas flow
• Accuracy: ±0.3%vol (CO2 ) ±3% of measured value
• Resolution: 0.001% / 10ppm
• Repeatability: ± 100ppm vol ± 1% of measured value
• Sampling Method: Sample tube draw (diffusion with cap removed)
• Maintenance Interval: no maintenance required
• Self-Diagnostics: complete function check of the sensor module on startup
• Dimensions: 2.0 × 2.25 × 0.62 inches
• Sensor Life Expectancy: > 15 years

Sensor Electrical / Mechanical

• Power Input: 5-14 VDC
• Current Consumption: 40 mA average

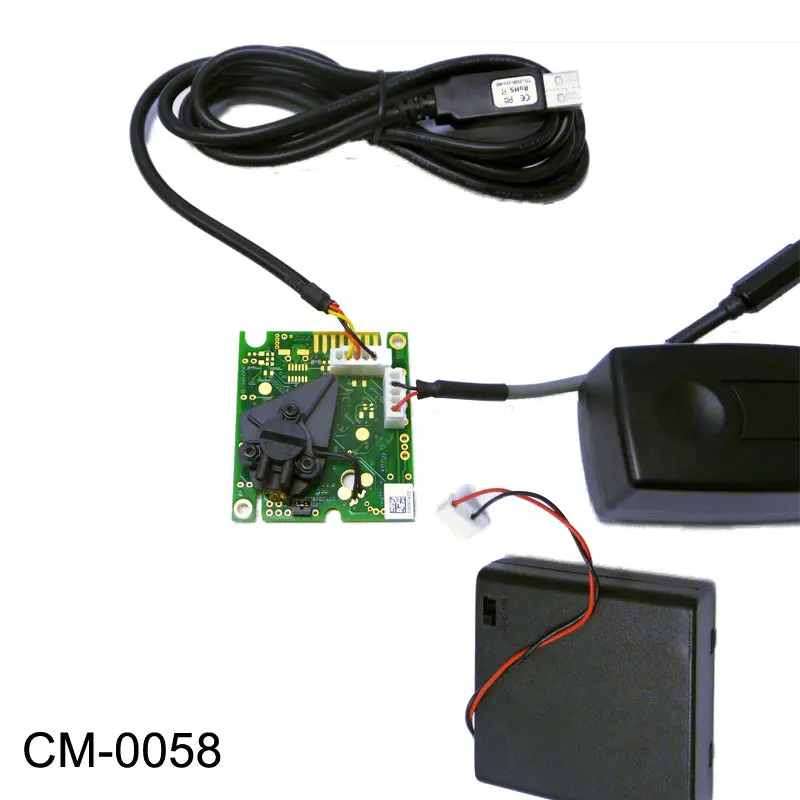

Development Kit Includes

• 6’ (1.8m) USB -UART bridge cable (non-standard)
• 6VDC universal wall power supply with connector for sensor 120/240 VAC 50/60 Hz
• 4x AA battery pack w/ connector for sensor

Warranty

• 90 days – See CO2Meter Terms and Conditions.

Documents

Data Sheet (pdf)

Manual (pdf)

Senseair ISO Certification (pdf)

Communication Protocols Manuals (zip)

Sensor Calibration Procedure (pdf)

 10% vs 30% ICB Sensor Accuracy Comparison (pdf)

Gas Monitoring in Science Landing Page

Free Easy-to-use GasLab™ Software

This device uses GasLab® software for setup, calibration, data logging, and real-time data analysis. GasLab® makes it easy to export data into a .CSV file that can be imported into any industry-standard software or spreadsheet. GasLab® runs on Windows XP or higher, and is free to use with our products.

Accessories

• Sample Draw Pump Kit – includes pump, hose, filters
• USB Extension Cable – extend USB cable 16 ft. (5m)
• Probe Enclosure for Development Kits with hydrophobic filters.
