K33 ICB High-Range CO2 Sensor – 0–30% Measurement

Description

The (033-9-0027) K33 ICB CO2 sensor (formerly known as the SE-0026) is designed to measure up to 30% carbon dioxide in real time in biological or scientific applications where artificially high levels of CO2 are maintained in an enclosed apparatus.

Features

• Long-life NDIR CO2 Sampling Sensor
• Easy communication using industry standard I/O
• Little interference or cross sensitivity from NO2 below and CO above
• Properly configured, can take a sample containing almost 100% humidity

Models

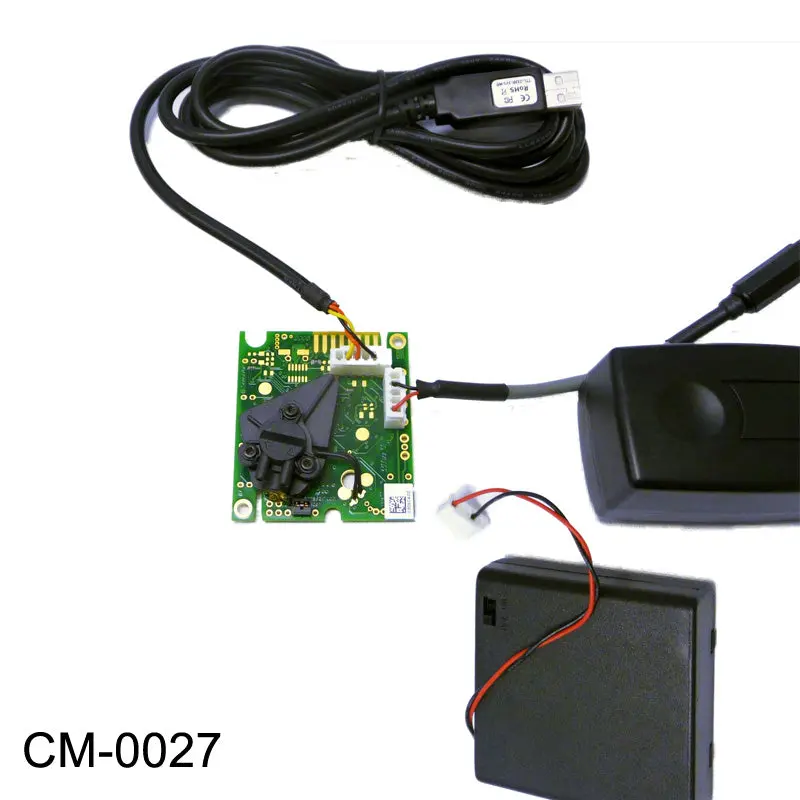

• CM-0027 K33 ICB 30% CO2 Sensor Development Kit – Easy to use, simply plug the sensor module into your PC via USB. The Devkit includes a K33 ICB sensor with pre-soldered connectors that provide power and connectivity. Use it for evaluation, rapid application development or for experiments. Uses our free GasLab® software to measure and graph carbon dioxide, to configure the sensor or for data logging.
• 033-9-0027: K33 ICB 30% CO2 Sensor Only – for integration into high-volume OEM products. Contact us directly for wholesale pricing on large quantities of this sensor. For higher accuracy 10% CO2 model click here.

Specifications

• Measurement Range: 0 – 300,000 ppm (0-30%)
• CO2 Measurement: non-dispersive infrared (NDIR)
• Response Time: <20s, diffusion or tube IN/OUT (0.2l/minute gas flow)
• Rate of Measurement: every 30 seconds
• Accuracy: ±0.5% vol  ±3% of measured value
• Repeatability: ± 0.1% vol. CO2 ± 2% of measured value
• Resolution: 0.01% / 100ppm
• Measurement Method: Sampling
• Communication Options: UART or I2C
• Available Outputs: Digital
• Sensor Life Expectancy: > 15 years
• Maintenance Interval: no maintenance required
• Self-Diagnostics: complete function check of the sensor module on startup

Sensor Electrical / Mechanical

• Power Input: 5-14 VDC
• Current Consumption: 40 mA average
• Max Current: 250 mA
• Dimensions: 2.0 × 2.25 × 0.62 inches

Development Kit Includes

• 6’ (1.8m) USB -UART bridge cable (non-standard)
• 6VDC universal wall power supply with connector for sensor 120/240 VAC 50/60 Hz
• 4x AA battery pack w/ connector for sensor

Warranty

• 90 days – See CO2Meter Terms and Conditions

Documents

Data Sheet (pdf)

Manual (pdf)

Senseair ISO Certification (pdf)

Communication Protocols Manuals (zip)

Sensor Calibration Procedure (pdf)

 10% vs 30% ICB Sensor Accuracy Comparison (pdf)

Case Studies

• Emission Reduction in Diesel Engines Tested with K-33 CO2 Sensor

Free Easy-to-use Gaslab™ Software

This device uses GasLab® software for setup, calibration, data logging, and real-time data analysis. GasLab® makes it easy to export data into a .CSV file that can be imported into any industry-standard software or spreadsheet. GasLab® runs on Windows XP or higher, and is free to use with our products.

Accessories

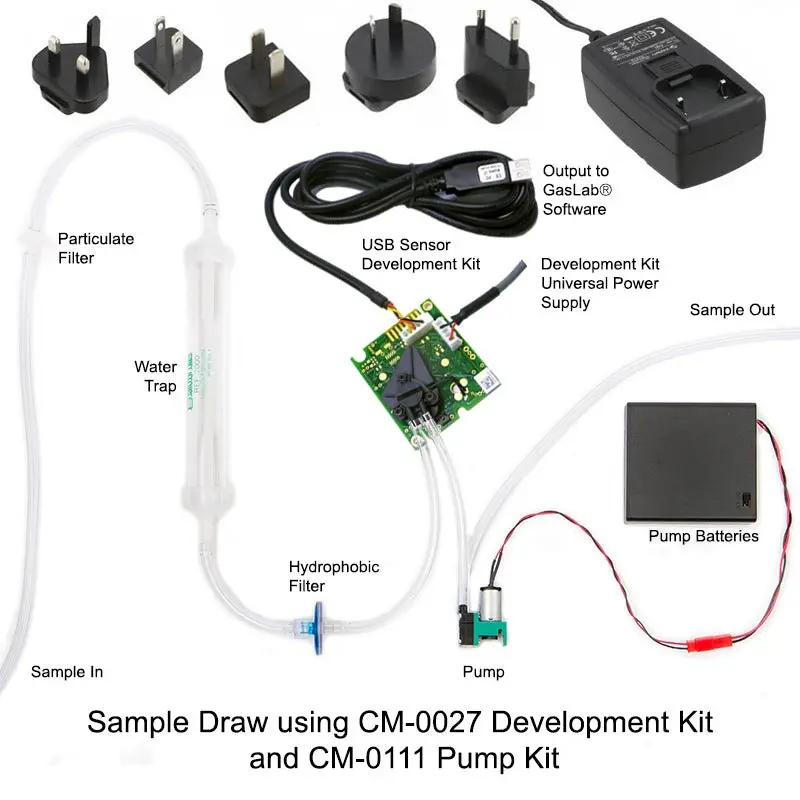

• Sample Draw Pump Kit – includes pump, hose, filters
• USB Extension Cable – extend USB cable 16 ft. (5m)
• Probe Enclosure for Development Kits with hydrophobic filters.
