SprintIR-W High-Range CO₂ Sensor – 0–20% Measurement

Description

The SprintIR®-W Carbon Dioxide Sensor is one of the fastest (20 measurements per second!), most accurate CO2 sensors on the market. The sensor uses advanced solid-state technology and offers no moving parts, making it ideal for high-speed sensing requirements.

Features

• High-speed sensing: 20 Hz
• Low power/energy consumption: 35 mW
• Vibration and shock resistant
• Integrates with wireless IoT networks such as Zigbee®, Wi-Fi, LoRa, Bluetooth®, SigFox, and EnOcean

Models

• GC-0017 SprintIR®-W 20% CO2 Sensor – for integration into high-volume OEM products.

Specifications

• Sensing Method: NDIR with Gold-plated optics
• Measurement range: 20% (200,000ppm) CO2
• Sample Method: Diffusion (Tube cap adapter available)
• Accuracy: ±70 ppm ± 5% of reading
• Resolution: 10ppm
• Warm Up Time: <1 min to operational (< 2 secs to initial reading)
• Sensor Life Expectancy: > 15 years

Electrical/Mechanical

• Power Input: 3.2-5.5VDC (3.3V recommended)
• Peak current: 100mA
• Average Current: <15mA
• Weight: 8 grams (w. tube cap 29 grams)
• UART Only 9600/8/1/N

Warranty

• 90 days – See CO2Meter Terms and Conditions.

Documents

Data Sheet (pdf)

Manual (pdf)

Dimensional Drawings (pdf)

Quality Certificate – ISO9001 (pdf)

GSS Guide for Sample Draw Pumps (pdf)

Additional Application Notes

Case Studies

• NASA Wearable CO2 Monitor uses CozIR Sensor

Accessories

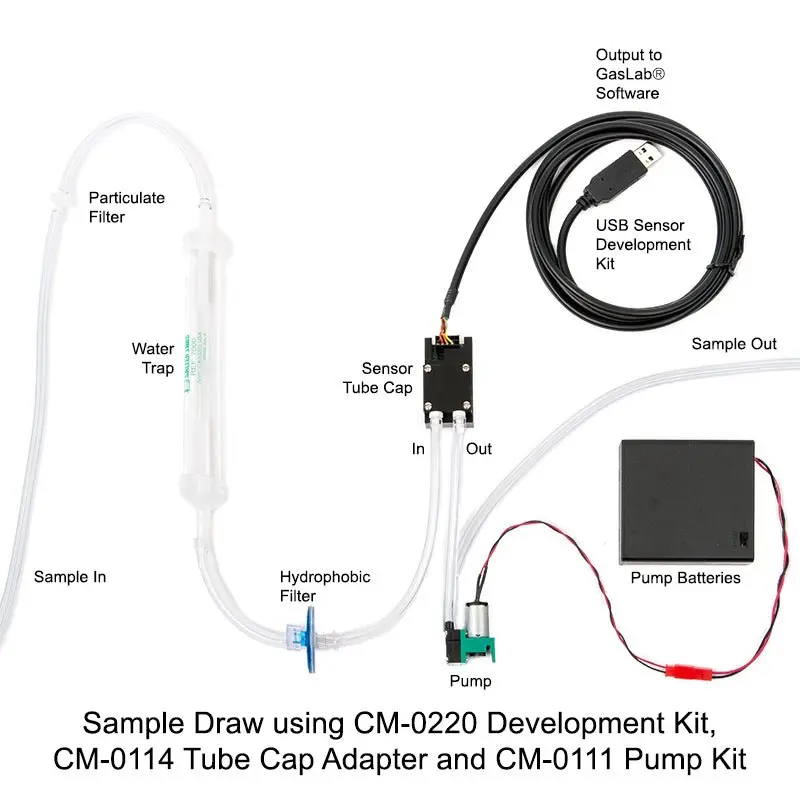

• Sample Draw Pump Kit – includes pump, hose, filters
• USB Extension Cable – extend USB cable 16 ft. (5m)
• Probe Enclosure for Development Kits – protects the sensor in harsh environments, with hydrophobic filter option.
• TC1-5 Tube Cap Adapter – easily converts sensor from diffusion applications to sampling sensor.
