Description
The SprintIR®-W Carbon Dioxide Sensor is ideal for high-speed sensing requirements and measuring rapidly changing CO2 levels up to 100%. This sensor is most commonly used in healthcare, MAP, fire suppression testing and transportation applications.
Features
- High-speed sensing: 20 Hz
- Low power/energy consumption: 35 mW
- Solid-state: no moving parts, no heated filaments
- Vibration and shock resistant
Models
- GC-0018 SprintIR®-W 100% CO2 Sensor Only – for integration into high-volume OEM products.
Specifications
- Sensing Method: NDIR with Gold-plated optics
- Measurement range: 100% CO2
- Sample Method: Diffusion (Tube cap adapter optional)
- Accuracy: ±300 ppm ± 5% of reading
- Resolution: 100ppm
- Warm Up Time: < 2 secs to initial reading, <1 min to operational
- Weight: 8 grams (w. tube cap 29 grams)
- Serial communications 9600/8/1/N
- Sensor Life Expectancy: > 15 years
Electrical/Mechanical
- Power Input: 3.2-5.5VDC (3.3V recommended)
- Average Current: <15mA
- Peak current: 100mA
Warranty
- 90 days – See CO2Meter Terms and Conditions.
Documents
Data Sheet (pdf)
Manual (pdf)
Development Kit Quick Start Guide (pdf)
Quality Certificate – ISO9001 (pdf)
GSS Guide for Sample Draw Pumps (pdf)
This device uses GasLab® software for setup, calibration, data logging, and real-time data analysis. GasLab® makes it easy to export data into a .CSV file that can be imported into any industry-standard software or spreadsheet. GasLab® runs on Windows XP or higher, and free to use with our products.
Accessories

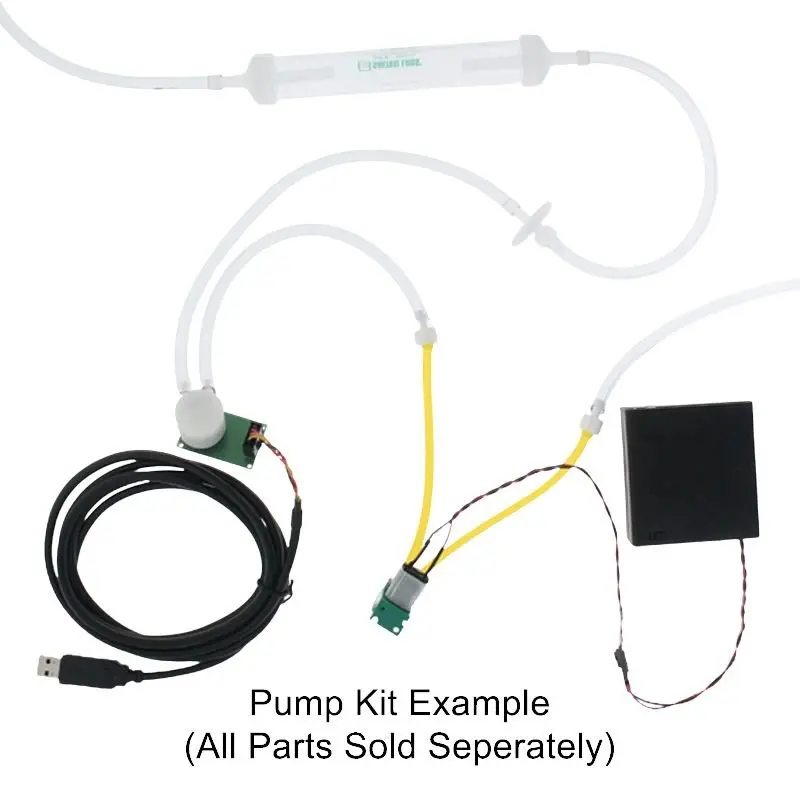

- Sample Draw Pump Kit – includes pump, hose, filters
- USB Extension Cable – extend USB cable 16 ft. (5m)
- Probe Enclosure for Development Kits – protects the sensor in harsh environments, with hydrophobic filter option.
- TC1-5 Tube Cap Adapter – easily converts sensor from diffusion applications to sampling sensor.
