Description

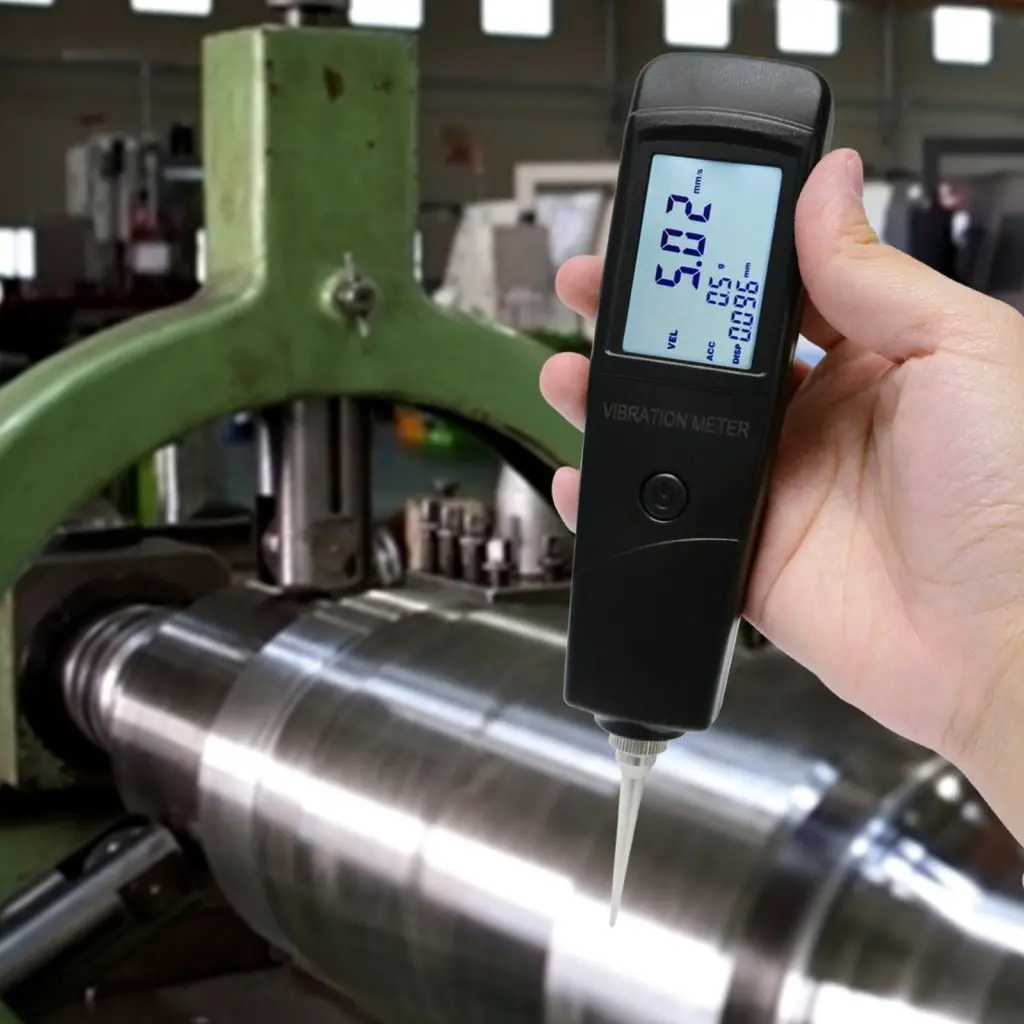

Used for measuring periodic motion, to check the imbalance and deflecting of moving machinery. Specifically designed for present measuring various mechanical vibration. So as to provide the data for the quality control, run time and equipment upkeep.
Features:
- Display three parameters Displacement, Velocity, and Acceleration simultaneously
- Wide frequency range (10Hz ~ 10kHz) in acceleration mode
- With Max Hold Function
- Metric/Imperial Conversion
- Manual or Auto Power Off function
- Specially designed for easy on-site vibration measurement of all rotating machinery for quality control, commissioning and predictive maintenance purposes.
- Bearing condition monitoring function.
- Individual high-quality accelerometer for accurate and repeatable measurements
- USB data output to connect with PC (Cable & Software is not included in the set)
- Bluetooth data output choice (adapter and software is not included in the set)
- In accordance with ISO 2954, used for periodic measurements, to detect out-of-balance, misalignment and other mechanical faults in rotating machines
- Lightweight and easy to use
Specification:
- Display: 4 digits, 18mm LCD
- Measuring range:
- Acceleration: 0.1~300m/s² Equivalent Peak 985ft/s²
- Velocity: 0.01~300mm/s True RMS 0.000~13.0inch/s
- Displacement: 0.001~3.000mm 0.04~120.0 mil Equivalent Peak-peak
- Transducer: Piezoelectric Accelerometer
- Frequency Range:
- Acceleration: 10Hz~10kHz
- Velocity: 10Hz~1kHz
- Displacement: 10Hz~1kHz
- Accuracy: 10% of Reading+2 digits
- Data Output: USB,RS-232
- PC Interface: USB or Bluetooth
- Operating Conditions:
- Temperature: 0~50ºC
- Humidity: <90%RH
- Power Supply: Lithium Battery
- Dimensions: 202 x 43 x 23mm (8.0 x 1.7 x 0.9 inch)
- Weight: 130gms (Including Batteries)
Set Includes:
- 1 x Vibration Meter (Main Unit)
- 1 x Power Adapter
- English Instruction Manual
- Carrying Case
